Communications/CB Radio Mounting

IMPORTANT:

H94464-UN-14MAY10

H96333-UN-14MAY10

H101604-UN-18MAY11

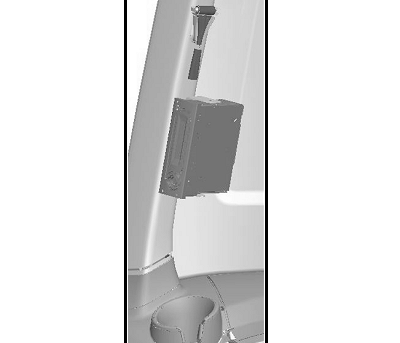

Rear Cornerpost Location (Right-Hand Rear)

H101603-UN-18MAY11

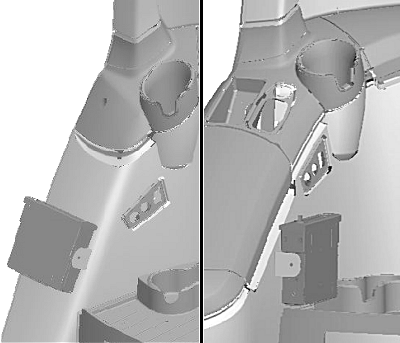

Deluxe Cab Location / Premium Cab Location

A - Antenna Mount

B - Antenna Cable

To install additional communications radio, see your John Deere dealer.

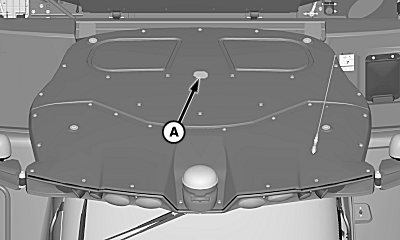

Antenna mount (A) is located in center of cab roof.

NOTE: Remove cup holder to locate antenna cable and route though opening.

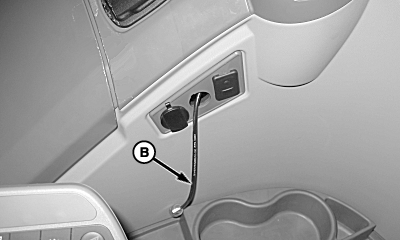

Antenna cable (B) is located on right-hand side of cab under armrest console.

IMPORTANT: Cornerpost cover must be removed before drilling. Be careful not to damage wiring harnesses and coolant hoses in locations shown when drilling holes or installing hardware.

Use bracket supplied by manufacturer as a template to locate and drill holes as required in various locations shown. Use self-tapping screws or cap screws with nuts to mount bracket.

NOTE: Certain broadcast bands may cause interference with the position receiver. Select a different broadcast band or see your John Deere dealer if signal losses are noticed with the position receiver.
