Tine Feed Accelerator—Wing Replacing

CAUTION:

H102209-UN-15JUN11

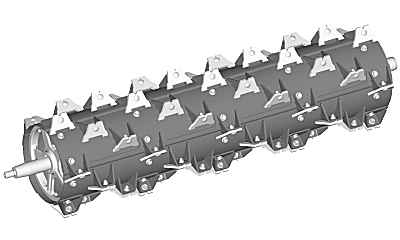

Feed Accelerator Wing

H102210-UN-15JUN11

Feed Accelerator Wing

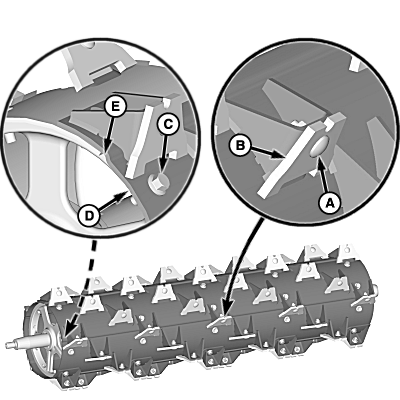

A - Round Head Bolt(s)

B - Feed Accelerator Wear Strip

C - Cap Screws

D - Wing Assembly

E - Overlap Location

Feed accelerator wings and wear strips can be replaced without removing the feed accelerator.

Remove round head bolts (A) and replace feed accelerator wear strips (B) as required. Tighten round head bolts to specification.

Item	Measurement	Specification
Feed Accelerator Wear Strip Round Head Bolts	Torque	73 N·m (54 lb.-ft.)

Remove cap screws (C) and replace wing assembly (D) as required.

IMPORTANT: Feed accelerator must be statically balanced. Add washers as needed until feed accelerator is balanced.

Install wing assembly so it overlaps at location (E) as shown. Tighten cap screws to specification.

Item	Measurement	Specification
Feed Accelerator Wing Assembly Cap Screws	Torque	73 N·m (54 lb.-ft.)
