Cleaning Shoe Access Door (Spreader Machines)

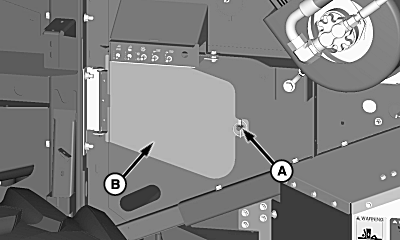

H102245-UN-15JUN11
A - Quick-Lock Pin
B - Access Door
Remove quick-lock pin (A) to open access door (B). Opening access door allows operator to look at cleaning shoe area when adjusting chaffer or sieve or when inspecting cleaning shoe area.|
OUO6075,0000CA7-19-20110616 |
