Left-Hand Side Shields


S660 and S670

CAUTION:

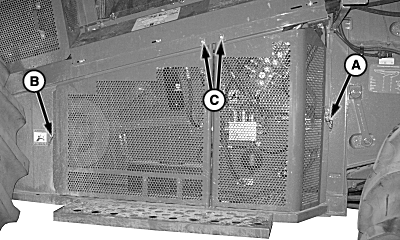

H105327
H105327-UN-01MAY12

A - Quick-Lock Pin

B - Quick-Lock Pin

C - Cap Screws

Shut OFF engine, set parking brake and remove key.

Side Shields— Remove quick-lock pin (A and B) to open shields.

Remove cap screws (C) and lift shields to remove.


S680 and S690

CAUTION:

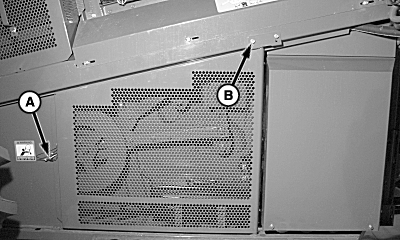

H96802
H96802-UN-09JUN10

A - Quick-Lock Pin

B - Cap Screws

Shut OFF engine, set parking brake and remove key.

Side Shields— Remove quick-lock pin (A) to open shield.

Remove cap screws (B) and lift shield to remove.

H96803
H96803-UN-09JUN10

A - Quick-Lock Pin

B - Latch

C - Shield

Fan Shield— Remove quick-lock pin (A) and turn latch (B) to remove shield (C).

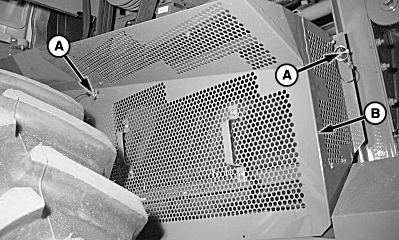

H96804
H96804-UN-09JUN10

A - Quick-Lock Pins

B - Shield

Upper Separator Shield— Remove quick-lock pins (A) and remove shield (B).

H96804
H96804-UN-09JUN10

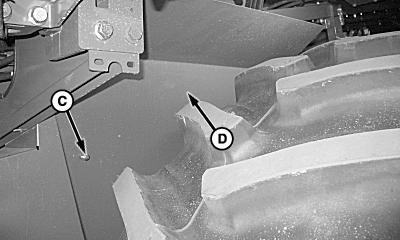

H96805
H96805-UN-09JUN10

A - Quick-Lock Pins

B - Shield

C - Cap Screw

D - Shield

Front Separator Shield— Remove quick-lock pins (A) and remove shield (B).

Remove cap screw (C) and push front separator shield (D) rearward to remove.

OUO6075,0000E94-19-20120501
