Overshot Beater Belt (If Equipped)—Adjusting (S670, S680 and S690)

CAUTION:

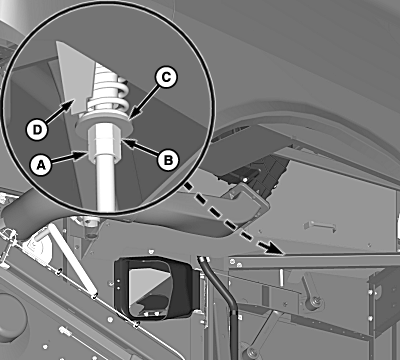

H98549
H98549-UN-12OCT10

A - Nut

B - Nut

C - Washer

D - Gauge

Shut OFF engine, set parking brake and remove key.

Loosen nut (A) and tighten nut (B) until washer (C) is positioned between end of gauge (D) and bottom of step. Tighten lock nut.

OUO6075,0000E9A-19-20120207
