Tailings System Elevator Sensors

CAUTION:

H70551

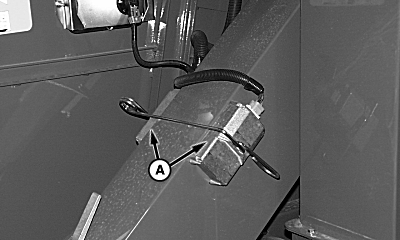

H70551-UN-02JAN02

S660 and S670

H105437

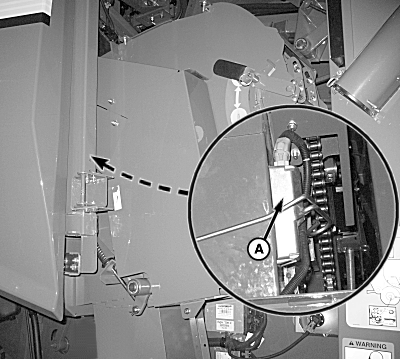

H105437-UN-17MAY12

S680 and S690

A - Tailings Sensors

Tailings sensor is a Class 1 laser product and emits laser radiation when powered. When servicing or removing tailings sensors, use caution and do not view beam directly.

Key switch must be turned OFF and tailings sensor must be unplugged before servicing or removing sensors.

DO NOT operate sensor with lens removed. Accessible laser emission when lens is in place:

  • 850 nm
  • 500 nsec pulse width
  • ≤ 500 Hz rep rate
  • < 90 nJ per pulse
  • 43 uW average power
  • Class 1 levels (Eye Safe)

Accessible laser emission levels if sensor was operated with lens removed are:

  • 850 nm
  • 500 nsec pulse width
  • ≤ 500 Hz rep rate
  • < 380 nJ per pulse
  • 188 uW average power
  • Class 3R Levels (small potential for eye injury)
  1. Remove tailings sensors (A) to inspect and clean lenses if needed.
  2. If lenses are clean, remove and check for dust. If dust is found, completely clean area and reassemble lens onto unit making sure that gasket is sealing.
  3. Verify lens is retained with all previously removed screws prior to installation.

    CAUTION: Failure to install plastic cover prior to replacement of sensors on elevator may cause malfunction, incorrect harvest readings or sensor damage, and could allow for potentially hazardous eye exposure when sensor is removed.

  4. Install sensor and test system.
  5. If display continues to read full or empty, contact your John Deere dealer.
