Tailings System Elevator Paddles

CAUTION:

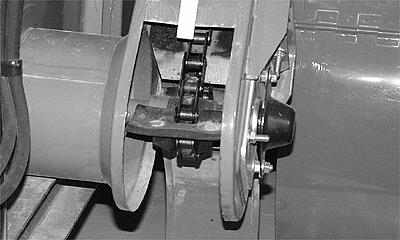

H62187
H62187-UN-13JAN00

S660 and S670

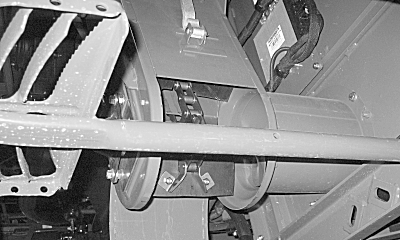

H97055
H97055-UN-22JUN10

S680 and S690

Shut OFF engine, set parking brake and remove key.

Check elevator chain occasionally for worn or missing paddles.

In muddy conditions, one steel paddle may be installed in the elevator chain to act as a wiper.

OUO6075,0000EB0-19-20120207
