Lubrication Decal Locations

H97176
H97176-UN-30JUN10

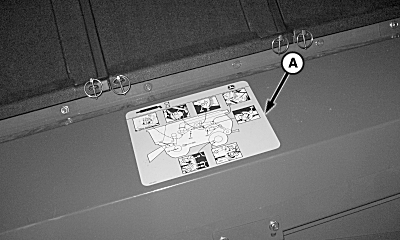

Left-Hand Lubrication Decal

H83439
H83439-UN-01JUN05

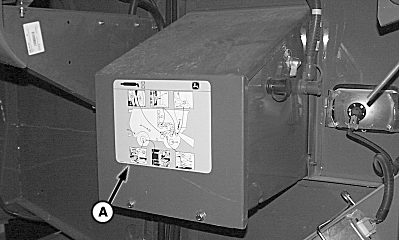

Right-Hand Lubrication Decal (S660 and S670)

H97177
H97177-UN-30JUN10

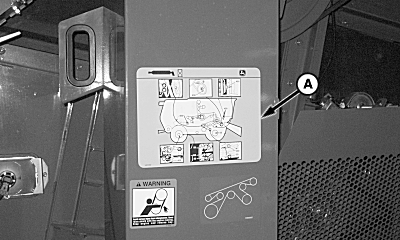

Right-Hand Lubrication Decal (S680 and S690)

A - Lubrication Decals

Lubrication decals (A) show the different locations of grease points around the machine. Follow lubrication times provided on decals and refer to hour intervals listed in this section for further information.

Bearing failures or overheating can result in a fire. To reduce bearing failures or overheating, follow hour intervals listed in this section for further information.

Crop material and other debris may accumulate around bearings and bearing covers. Inspect and clean these areas periodically throughout the harvest day.
