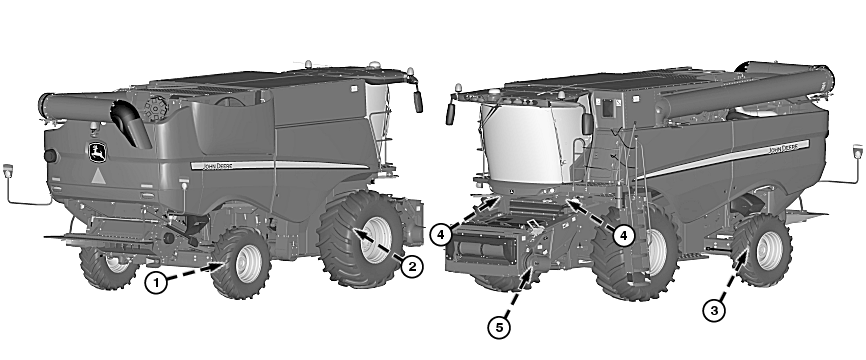

Every 10 Hours

1. NOTE:


   H96420-UN-11AUG10


   H86769-UN-01NOV06


   H97603-UN-25AUG10


   H86831-UN-07NOV06

   A - Drain Hose

   When operating in mud and water, grease rear axle spindle bearings and motor pivots every 10 hours. Normal conditions grease every 50 hours.

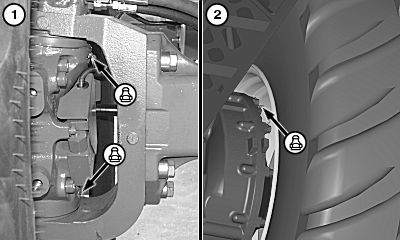

   Two Speed Four-Wheel Drive Motor Pivots - Grease two fittings (both sides).

---




2. Final Drive Outer Bearings - When operating in mud and water, grease fitting (both sides) every 10 hours. Normal conditions grease fitting (both sides) every 50 hours.

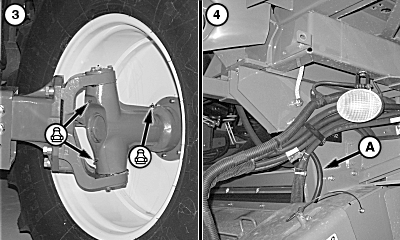

3. Two Wheel Heavy Duty and Extra Heavy Duty Axle Spindle Bearings/Pivot Pins - When operating in mud and water, grease fittings (both sides) every 10 hours. Normal conditions grease fitting (both sides) every 50 hours.

4. Air Conditioning Drain Hose - Clean air conditioning drain hose (A) on both sides of cab.

5. NOTE: Use John Deere TY6341 Multi-Purpose SD Polyurea Grease or John Deere TY25744 Synthetic Grease when greasing feeder house reverser drive gearcase.

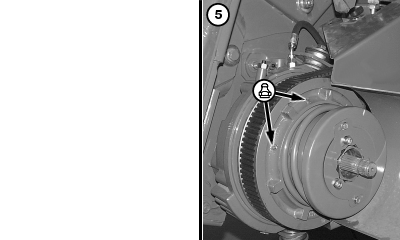

   S660 and S670 Machines: Feeder House Reverser Drive Gearcase (Variable Speed Feeder House) - Turn sheave so fittings are in the 12 and 2 o’clock positions.

   When operating in severe conditions or high yielding corn, grease fitting at 12 o’clock position, 5 - 8 pumps every 10 hours. Excess grease will purge from under spring.

   Grease fitting at 2 o’clock position, 2 - 3 pumps every 10 hours. Over greasing this fitting can allow grease to purge on belt and cause belt failure.

   When operating in normal conditions, grease 12 o’clock fitting (10 - 15 times) and 2 o’clock fitting (5 - 8 times) every 50 hours. After greasing, cycle variable sheaves through speed range a couple of times to ensure grease spreads evenly over cam surfaces.
