Every 250 Hours (Tier 2/Stage II) (S660 and S670)

1. IMPORTANT:


   H96428-UN-20AUG10


   H97455-UN-30JUL10


   H97459-UN-15DEC10

   A - Cap

   B - Drain

   C - Dipstick

   D - Fuel Tank Breather

   Change oil every 100 hours if fuel contains a high sulfur content. Refer to Fuels and Lubricants section for further information on sulfur content.

   Fill crankcase with seasonal viscosity grade oil or Torq-Gard™ (250 hours service interval). If using John Deere Plus-50™ or Plus-50™ II engine oil and a John Deere filter, service interval can be extended by 50 percent. Example: 250 Hours extends to 375 Hours.

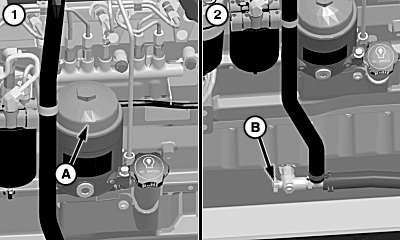

   Engine Crankcase Top Load Oil Filter - Remove cap (A) and remove filter. Replace filter and install cap. Tighten cap to specifications.

   Item	Measurement	Specification
   Oil Filter Cap	Torque	40 N·m (30 lb.-ft.)

---




2. Engine Crankcase Top Load Oil - Open drain (B) to remove oil.

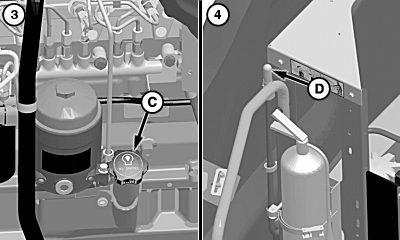

3. Engine Crankcase Top Load Oil - Remove dipstick (C) to fill and check oil level after filling.

4. Fuel Tank Breather - Visually inspect fuel tank breather (D). Do not allow debris to collect on breather. Remove fuel tank breather from hose and clean.
