Every 250 Hours (Tier 2/Stage II) (S680 and S690)

1. IMPORTANT:


   H96428-UN-20AUG10


   H97489-UN-02AUG10


   H97493-UN-02AUG10

   A - Oil Filter

   B - Drain

   C - Cap

   D - Dipstick

   E - Fuel Tank Breather

   Change oil every 100 hours if fuel contains a high sulfur content. Refer to Fuels and Lubricants section for further information on sulfur content.

   Fill crankcase with seasonal viscosity grade oil or Torq-Gard™ (250 hours service interval). If using John Deere Plus-50™ or Plus-50™ II engine oil and a John Deere filter, service interval can be extended by 50 percent. Example: 250 Hours extends to 375 Hours.

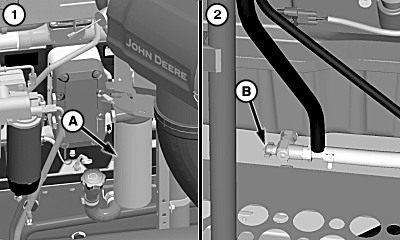

   Engine Crankcase Oil Filter - Remove and replace oil filter (A).

---




2. Engine Crankcase Oil - Open drain (B) to remove oil.

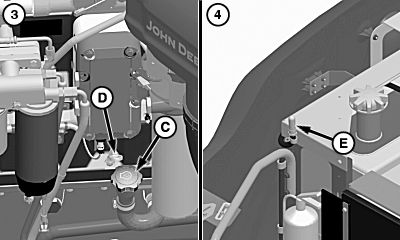

3. Engine Crankcase Oil - Remove cap (C) to fill and check oil level with dipstick (D) after filling.

4. Fuel Tank Breather - Visually inspect fuel tank breather (E). Do not allow debris to collect on breather. Remove fuel tank breather from hose and clean.
