Every 250 Hours (Interim Tier 4/Stage III B) (S680 and S690)

1. IMPORTANT:


   H96428-UN-20AUG10


   H97490-UN-02AUG10


   H97494-UN-02AUG10

   A - Oil Filter

   B - Drain

   C - Dipstick

   D - Fuel Tank Breather

   Change oil every 250 hours when using other engine oils as specified in Fuels and Lubricants section.

   Change oil every 400 hours when using John Deere Plus-50™ II engine oil and a John Deere filter. Refer to Fuels and Lubricants section for further information.

   Interim Tier 4/Stage III B engines require Plus-50™ II engine oil or a API CJ-4, ACEA E9, ACEA E6 certified oils.

   Only Ultra Low Sulfur Diesel (ULSD) fuel with less than 0.0015% (or 15 ppm) sulfur content can be used in Interim Tier 4/Stage III B engines.

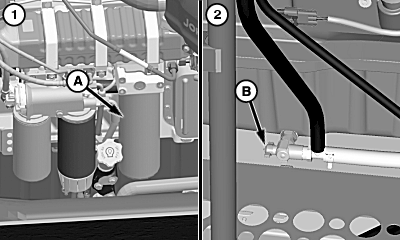

   Engine Crankcase Oil Filter - Remove and replace oil filter (A).

---




2. Engine Crankcase Oil - Open drain (B) to remove oil.

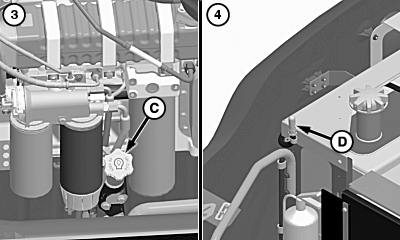

3. Engine Crankcase Oil - Remove dipstick (C) to fill and check oil level after filling.

4. Fuel Tank Breather - Visually inspect fuel tank breather (D). Do not allow debris to collect on breather. Remove fuel tank breather from hose and clean.
