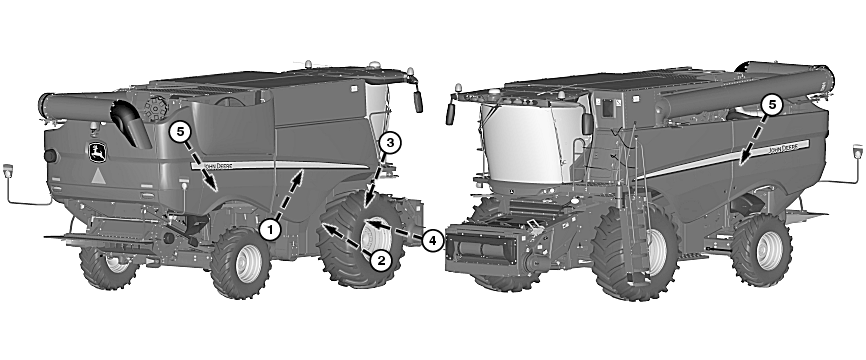

Every 400 Hours

1.
   H101058-UN-15APR11


   H86797-UN-06NOV06


   H86798-UN-06NOV06


   H101059-UN-15APR11

   A - Primary Countershaft Bearing

   B - Separator Bearing

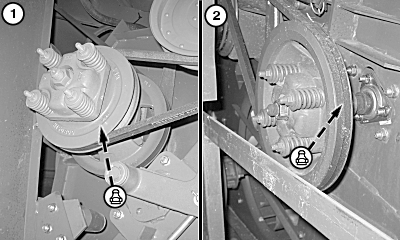

   S660 and S670 Machines: Tailings Auger Drive Slip Clutch - Rotate sheave assembly to access fitting. Do not over grease.

---




2. Conveyor Auger Drive Slip Clutch - Rotate sheave assembly to access fitting. Do not over grease.

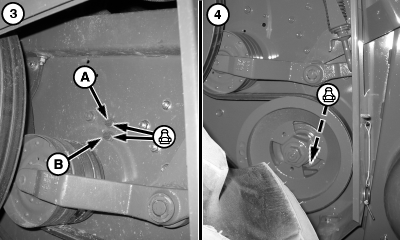

3. Right-Hand Side Lube Bank - Grease fittings to lubricate primary countershaft bearing (A) and separator bearing (B).

4. Feed Accelerator Bearing (Right Side) - Rotate sheaves to access fitting.

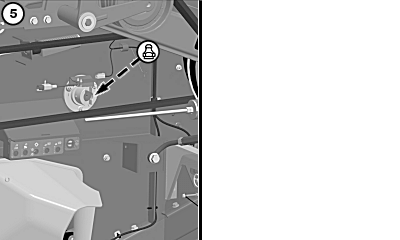

5. S670, S680 and S690 Machines: Overshot Beater Bearings (Optional) - Grease fitting (both sides).
