Every 1000 Hours (S670 ProDrive Machines)

1.

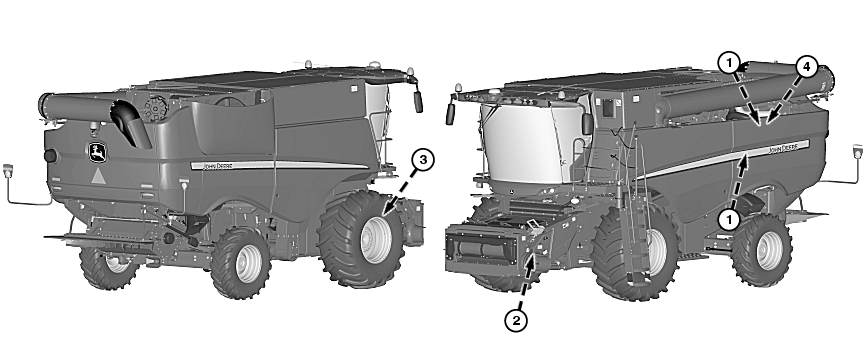

   H99379-UN-08DEC10


   H99380-UN-08DEC10


   H99381-UN-08DEC10


   H99382-UN-08DEC10

   A - Plugs

   B - Filter

   C - Plug

   D - Filter

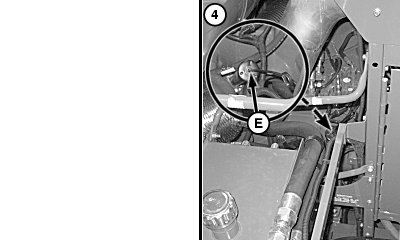

   E - Dipstick

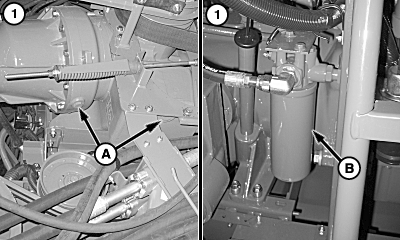

   Engine Power Takeoff Gearcase Oil and Filter - Drain oil at plugs (A). Remove and replace filter (B). Coat seal on new filter with oil. Hand tighten, then tighten 1/2 turn more.

---

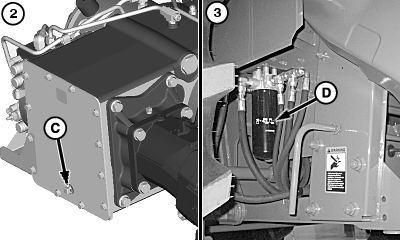

2. Transmission Oil - Drain oil at plug (C).

3. ProDrive/Main Engine Gearcase Lube Filter - Remove and replace filter (D). Coat seal on filter with oil. Hand tighten, then tighten 1/2 turn more.

4. NOTE: Overfilling engine power takeoff gearcase may cause oil to force dipstick tube out when machine is running.

   Fill Engine Power Takeoff Gearcase

   1. Fill until oil is at bottom line on dipstick (E).
   2. Install dipstick and run engine for one minute minimum.
   3. Shut OFF engine and let machine sit for five minutes allowing air to settle from oil.
   4. Remove dipstick and check oil level. Add oil until oil level is at top line on dipstick.
   5. Repeat procedures until oil level remains at top line on dipstick.
