Park Brake Switch (If Equipped)

NOTE:

H94718
H94718-UN-27JAN10

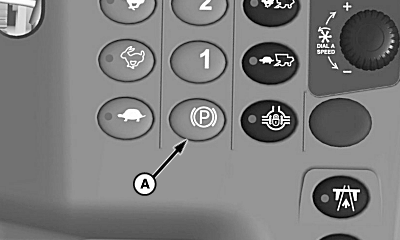

A - Park Brake Switch

System is in manual mode when machine is first started. Park brake indicator on cornerpost illuminates indicating park brake is engaged. Press park brake switch once to enter automatic mode.

Park brake switch (A) manually or automatically engages/disengages parking brake preventing machine movement.

    Automatic Mode:

  • Press park brake switch once to set park brake to automatic mode.
    • If multi-function lever is in neutral gate and speed is less than 1.5 km/h (1 mph), park brakes are applied. If multi-function lever is moved out of neutral gate, park brakes are released.
    NOTE: Park brake engages each time multi-function lever is set to neutral position or if engine is shut OFF.

    Manual Engagement (Default Mode):

  • Press park brake switch twice to set park brake to manual mode.
    • If multi-function lever is in neutral gate and speed is less than 1.5 km/h (1 mph), park brakes are applied. If multi-function lever is moved out of neutral gate or speed is greater than 1.5 km/h (1 mph) an alarm sounds.
