Differential Lock Switch (If Equipped)

NOTE:

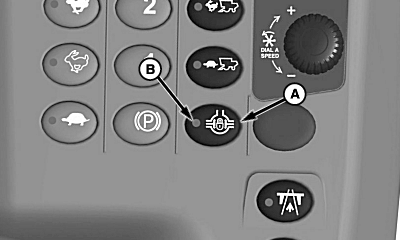

H94721
H94721-UN-27JAN10

A - Differential Lock Switch

B - Indicator Light

Differential lock does not engage when road transport disconnect switch is ON. Differential disengages when brake pedals are pressed.

Engagement is only possible if ground speed is below 10 km/h (6.2 mph) and automatically disengages when ground speed is above 12 km/h (7.5 mph).

Differential lock switch (A) manually engages/disengages the differential lock to resolve traction problems in the field. Indicator light (B) turns ON when system is active.

OUO6075,0000F85-19-20120209
