Posi-Torq™ Separator—Dual-Range

CAUTION:

H96714-UN-02JUN10

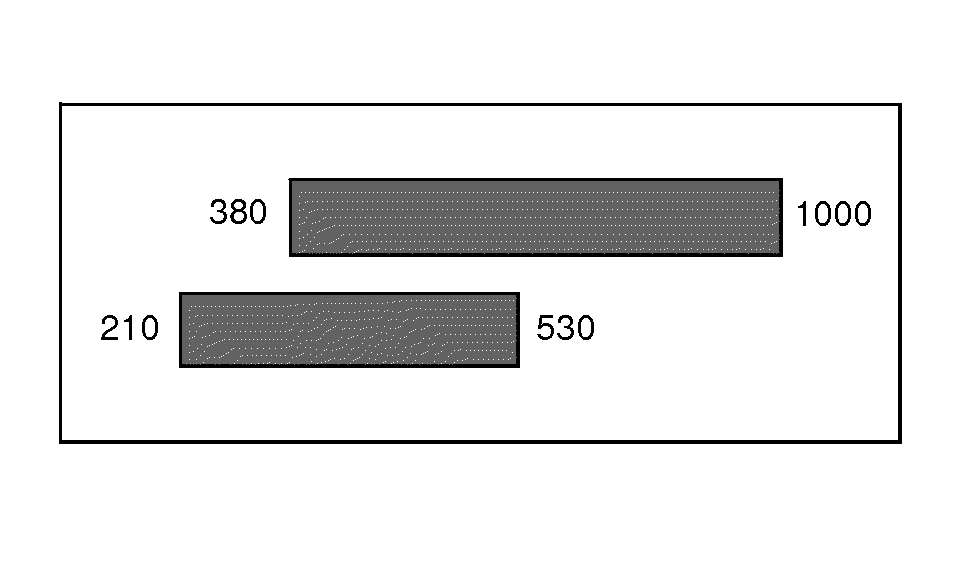

Speed Ranges (S660)

H96715-UN-02JUN10

Speed Ranges (S670, S680 and S690)

H96936-UN-17JUN10

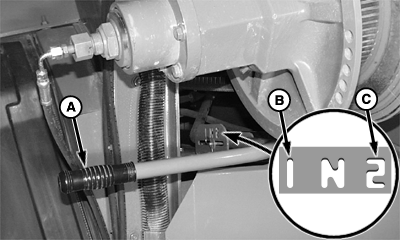

A - Handle

B - Low Speed Position (1)

C - High Speed Position (2)

NOTE: Use slowest possible speed with large seed crops to prevent damage.

To shift from low to high speed or high to low speed, move handle (A) to detented neutral position.

For low speed position (B), push handle towards separator sidesheet.

For high speed position (C), pull handle away from separator sidesheet.

To fully engage drive, it may be necessary to rotate variable sheaves a small amount while moving shift handle.

NOTE: Verify gears are fully engaged.

When changing separator speeds make sure to cycle power ON and OFF to recognize new speed range.

Shift to low speed if operating below 530 rpm for extended periods.
