Discharge Beater Belt—Adjusting

CAUTION:

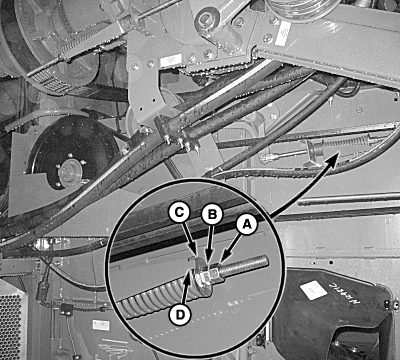

H97120
H97120-UN-24JUN10

S660 and S670

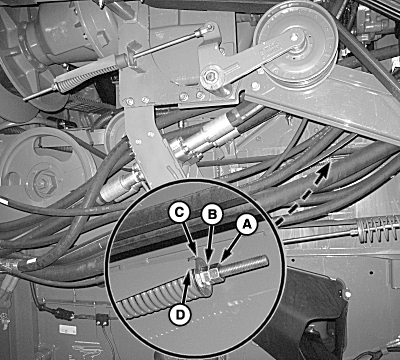

H96951
H96951-UN-17JUN10

S680 and S690

A - Nut

B - Nut

C - Washer

D - Gauge

Shut OFF engine, set parking brake and remove key.

Loosen nut (A) and tighten nut (B) until washer (C) is positioned between end of gauge (D) and bottom of step. Tighten lock nut.

OUO6075,0000F88-19-20120209
