Clean Grain Elevator Belt—Adjusting

CAUTION:

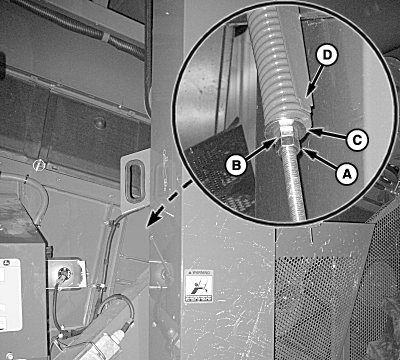

H97127
H97127-UN-27OCT10

S660 and S670

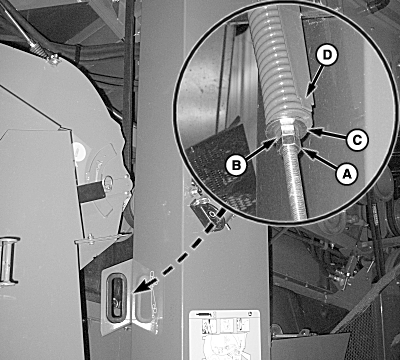

H97030
H97030-UN-22JUN10

S680 and S690

A - Nut

B - Nut

C - Washer

D - Gauge

Shut OFF engine, set parking brake and remove key.

Loosen nut (A) and tighten nut (B) until washer (C) is positioned between end of gauge (D) and bottom of step. Tighten lock nut.

OUO6075,0000F8C-19-20120209
