Tailings System Drive Belt—Adjusting (S680 and S690)

CAUTION:

H97014
H97014-UN-13SEP10

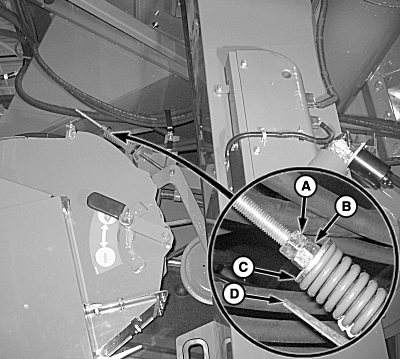

A - Nut

B - Nut

C - Washer

D - Gauge

Shut OFF engine, set parking brake and remove key.

Loosen nut (A) and tighten nut (B) until washer (C) is positioned between end of gauge (D) and bottom of step. Tighten lock nut.
