Tailings System Drive Chain—Adjusting (S680 and S690)

CAUTION:

H105438
H105438-UN-17MAY12

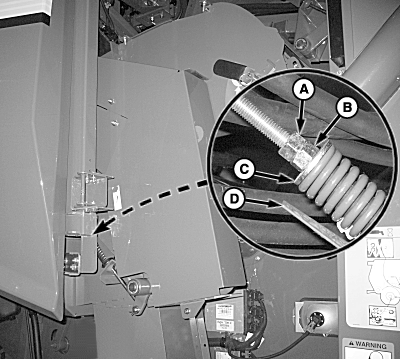

A - Nut

B - Nut

C - Washer

D - Gauge

Shut OFF engine, set parking brake and remove key.

Loosen nut (A) and tighten nut (B) until washer (C) is positioned between end of gauge (D) and bottom of step. Tighten lock nut.
