Tailings System Return Concave—Adjusting (S680 and S690)

CAUTION:

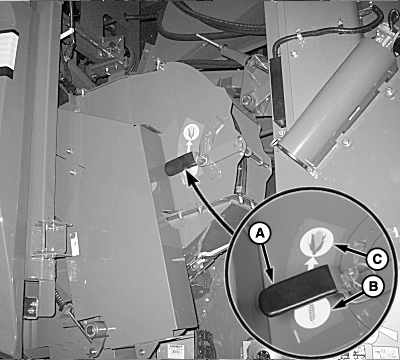

H97103-UN-13SEP10

A - Crop Selection Handle

B - Small Grain Position

C - Large Grain Position

IMPORTANT: To prevent personal injury or machine damage do not move crop selection handle when machine is running.

NOTE: Refer to Crop Settings section for recommended tailings system concave position settings.

Small Grain Position (B):

Crop selection handle (A) should be in ”LOWER” position, when harvesting small grain crops.

Large Grain Position (C):

Crop selection handle (A) should be in ”UPPER” position, when harvesting large crops or damage sensitive crops.
