Tailings Elevator Drive Belt—Adjusting (S660 and S670)

CAUTION:

H62186

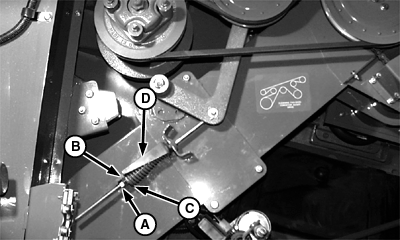

H62186-UN-13JAN00

A - Lock Nut

B - Nut

C - Washer

D - Gauge

Shut OFF engine, set parking brake and remove key.

Loosen lock nut (A).

Tighten nut (B) until washer (C) is positioned between end of gauge (D) and bottom of step. Tighten lock nut.
