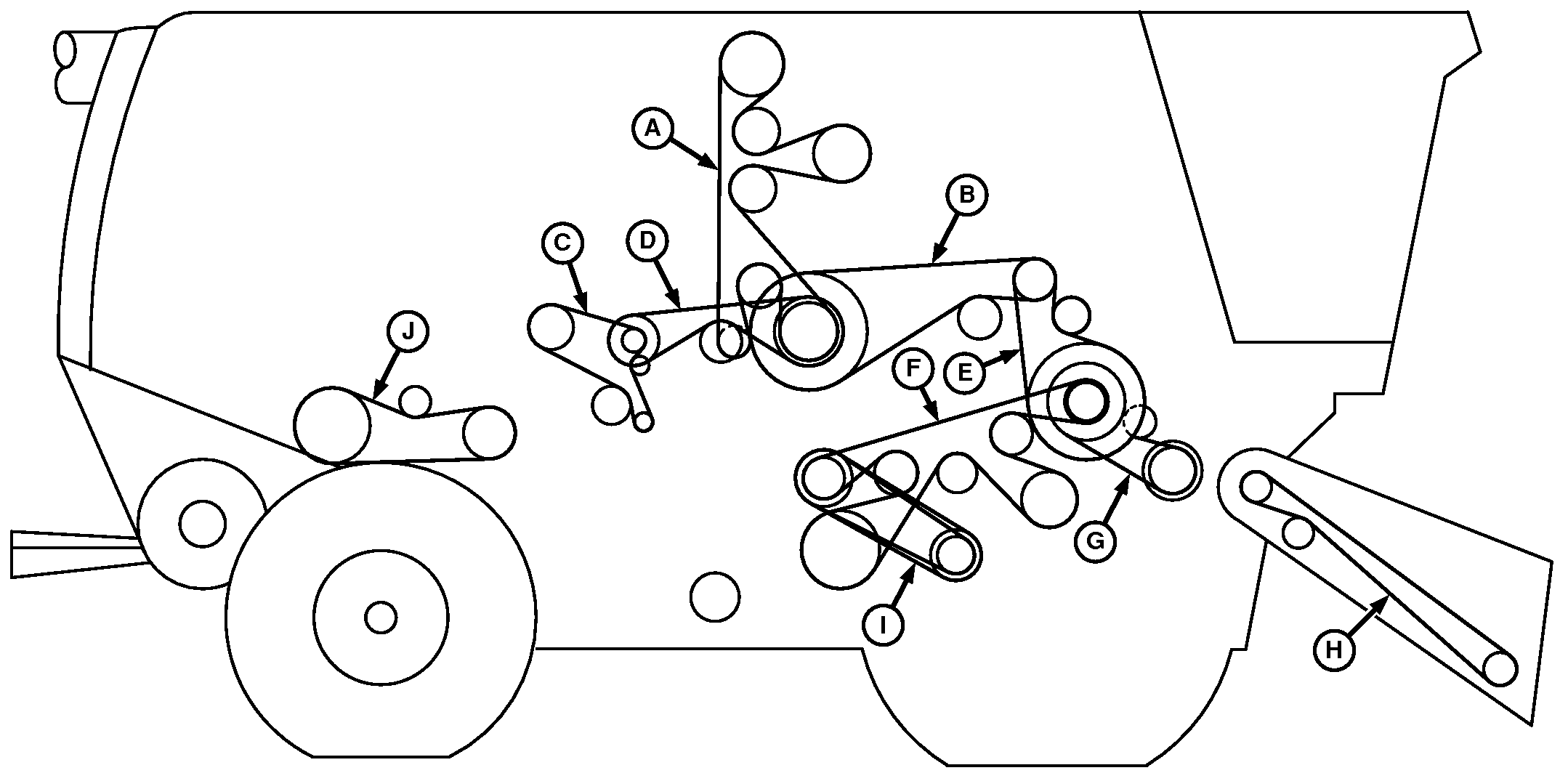

Drive Belts—Right-Hand (S680 and S690)

H96904-UN-16JUN10

A - Clean Grain Elevator Belt

B - Rear Right-Hand Jackshaft Belt

C - Tailings Elevator/Upper Auger #60 Roller Chain

D - Tailings System Drive Belt

E - Front Right-Hand Jackshaft Belt

F - Shoe Fan and Conveyor Augers Belt

G - Feed Accelerator Belt

H - Feeder Conveyor (Chain), #60 Chain

I - Cleaning Fan Variable Belt

J - Overshot Beater Drive Belt (Optional)
