Chopper Jackshaft Belt—Adjusting

CAUTION:

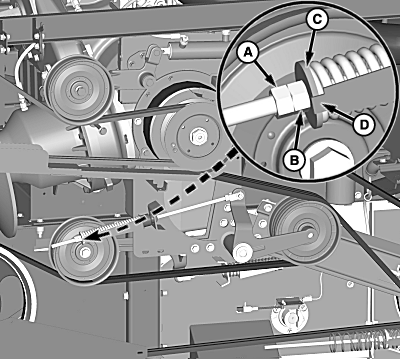

H98497
H98497-UN-08OCT10

S670

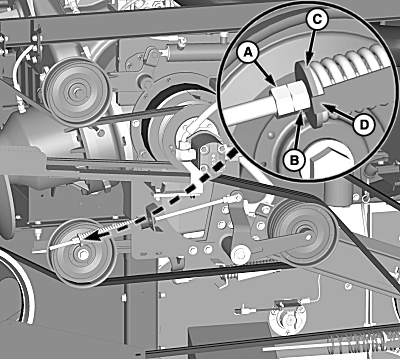

H98496
H98496-UN-08OCT10

S680 and S690

A - Lock Nut

B - Nut

C - Washer

D - Gauge

Shut OFF engine, set parking brake and remove key.

Chopper jackshaft belt is located on left-hand side above chopper.

Loosen nut (A) and tighten nut (B) until washer (C) is positioned between end of gauge (D) and bottom of step. Tighten lock nut.

OUO6075,0000FA4-19-20120209
