Grain Tank Drain Holes
H62226-UN-19JAN00
H80946-UN-27MAY04

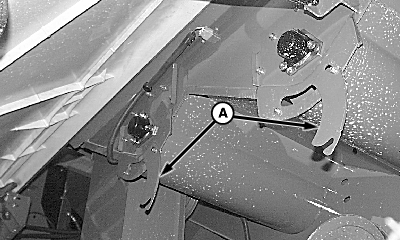

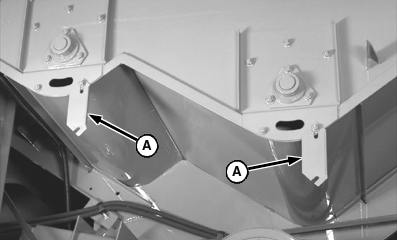

A - Drain Hole Doors
Grain tank drain hole doors (A) are located on right-hand end of both cross augers and must be opened during storage or for cleaning grain tank.Loosen cap screws and slide doors away from drain holes.
|
OUO6075,0000FA6-19-20120209 |
