Grain Tank Sample Trough

NOTE:

H98766
H98766-UN-21OCT10

H96883
H96883-UN-14JUN10

H96884
H96884-UN-14JUN10

A - Sample Trough

B - Door

Machine equipped (78 L/sec. (2.2 bu./sec.) unload rate must insert one end of sample trough through opening in grain tank and attach opposite end to slot in loading auger. No hardware is required to retain sample trough.

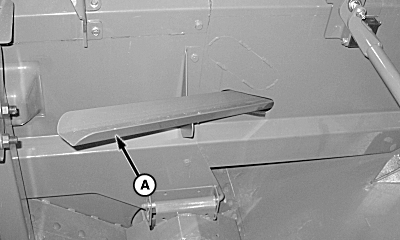

Grain tank sample trough (A) allows operator to take a sample of the harvested crop from the loading auger without entering the grain tank.

With machine full of harvested crop, move multi-function lever to neutral position and apply the parking brake.

Disengage header, but leave separator engaged.

CAUTION: Do not have a second person check for a grain tank sample.

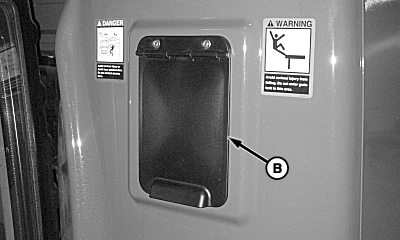

Open door (B). Lower end of grain tank trough spills off sample of harvested crop.
