Batteries—Removing and Installing (S660 and S670)

1.

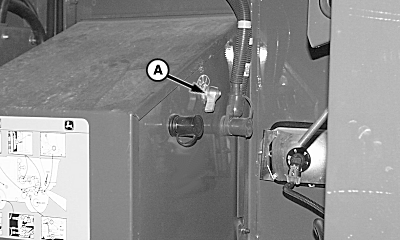

   H83428-UN-01JUN05

   A - Battery Disconnect Switch

   Turn battery disconnect switch (A) counterclockwise to OFF position.

---




2.

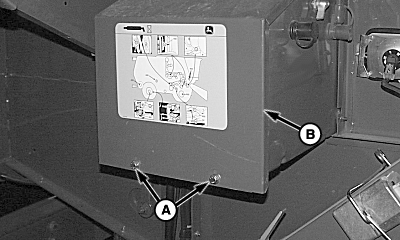

   H83464-UN-01JUN05

   A - Cap Screws

   B - Cover

   Remove cap screws (A) and cover (B) to access batteries.

---




3.

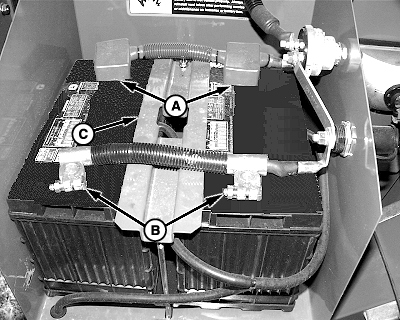

   H83385-UN-11JUL05

   A - Positive Cable

   B - Negative Cable

   C - Clamp

   Disconnect negative (-) cable (B) from batteries and negative jump start post.

---




4. Disconnect positive (+) cable (A) and positive jump start post.

5. Remove clamp (C) and battery vent tubes.

6. Clean batteries and battery mounting area.

7. Install batteries in battery box and on plastic tray.

8. Clean battery cables and posts and reconnect battery vent tubes.

9. Loosely install clamp (C).

10. Attach positive (+) cable (A) and positive jump start post.

11. Attach negative (-) cable (B) and negative jump start post.

12. Tighten battery clamp.

13.
    H83464-UN-01JUN05

    A - Cap Screws

    B - Cover

    Install cover (B) and retain with previously removed cap screws (A).

---




14. Turn battery disconnect switch clockwise to ON position.
