Fuse Center (S680 and S690)

NOTE:

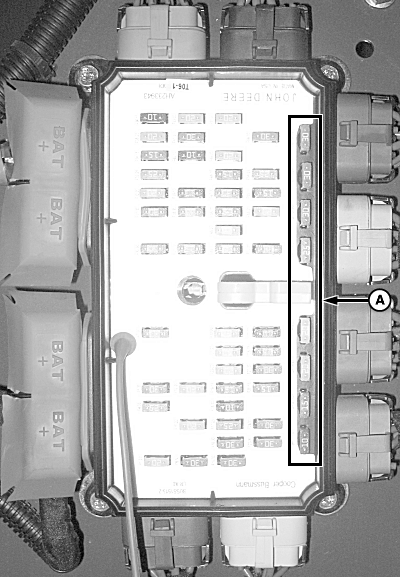

H96640-UN-27MAY10

• A— Spare Fuses
• F1 (cc# 0332) — Right Power Module 1 (RPM1) Power 3
• F2 — F3 Not Used
• F4 (cc# 0372) — Right Control Unit 1 (RCU1) Power 2
• F5 (cc# 0912) — Moisture Meter Power (HMM) (If Equipped)
• F6 — Not Used
• F7 (cc# 0342) — Right Control Unit 1 (RCU1) Power 1
• F8 (cc# 0312) — Right Power Module 1 (RPM1) Power 1
• F9 — Not Used
• F10 (cc# 0322) — Right Power Module 1 (RPM1) Power 2
• F11 — Not Used
• F12 (cc# 0352) — Right Power Module 1 (RPM1) Power 4
• F13 — F15 Not Used
• F16 (cc# 0242) — Left Control Unit (LC2) Power 2
• F17 (cc# 0172) — Left Power Module 1 (LPM1) Power 5
• F18 (cc# 0422) — Vehicle Control Module (VCM) Power (If Equipped)
• F19 (cc# 0362) — Right Power Module 1 (RPM1) Power 5
• F20 (cc# 5022) — Engine Control Unit (ECU) Power 2 (Interim Tier 4/Stage III B)
• F21 (cc# 5402) — Engine Control Unit (ECU) Power (Non Interim Tier 4/Stage III B)
• F22 (cc# 5012) — Engine Control Unit (ECU) Power 1 (Interim Tier 4/Stage III B)
• F23 (cc# 0572A) — Auxiliary Out Of Cab Power
• F24 (cc# 0252) — Left Control Unit (LC2) Power 1
• F25 — Not Used
• F26 (cc# 5042) — Fuel Transfer Pump
• F27 (cc# 8002) — Cab Control Unit (CCU)
• F28 (cc# 5062) — Dosing Pump
• F29 (cc# 4972) — Steering System Control Unit (SSU) Power (If Equipped)
• F30 (cc# 0152) — Left Control Unit (LC1) Power 2
• F31 (cc# 0162) — Left Control Unit (LC1) Power 1
• F32 (cc# 8082) — Recirculation Fan Power
• F33 (cc# 8062) — Cab Power Module (CPMA) Power 5
• F34 (cc# 8132) — Cab Power Module (CPMB) Power 4
• F35 (cc# 8142) — Cab Power Module (CPMB) Power 5
• F36 (cc# 8192) — Automatic Temperature Control (ATC) Power
• F37 (cc# 8172) — Seat Compressor
• F38 (cc# 8992) — Miscellaneous Cab Power 3: Wiper and Power Strip
• F39 (cc# 0132) — Left Power Module 1 (LPM1) Power 3
• F40 (cc# 0002) — Machine Wireless Gateway (MWG), Satellite, Radio, Primary Display Unit (PDU)
• F41 (cc# 0112) — Left Power Module 1 (LPM1) Power 1
• F42 — Not Used
• F43 (cc# 8182) — Recirculation Fan Power
• F44 (cc# 8242) — Auxiliary Power Outlets 1 and 2
• F45 (cc# 8092) — Cab Power 2, Accessory Power: Key Switch, Start Aid, Radio, Subwoofer
• F46 (cc# 8152) — Cab Power 2, Miscellaneous: GreenStar Display, Printer, Integrated Terrain Compensation (iTC), Primary Display Unit (PDU)
• F47 (cc# 0142) — Left Power Module 1 (LPM1) Power 4
• F48 (cc# 8122) — Cab Power Module (CPMB) Power 3
• F49 (cc# 8042) — Cab Power Module (CPMA) Power 3
• F50 — Not Used
• F51 (cc# 0122) — Left Power Module 1 (LPM1) Power 2
• F52 (cc# 8022) — Cab Power Module (CPMA) Power 1
• F53 — Not Used
• F54 (cc# 8072) — Cab Power 1, Miscellaneous: Cameras, Steering Column Lever (SCL), Cab Switch Module (CSM), Secondary Display Unit (SDU) Armrest, Subwoofer
• F55 (cc# 8162) — Dome Light and Power Mirror
• F56 (cc# 8032) — Cab Power Module (CPMA) Power 2
• F57 — Not Used
• F58 (cc# 8052) — Cab Power Module (CPMA) Power 4

H96641-UN-27MAY10

• F100 — F101 Not Used
• F102 (cc# 8102) — Cab Power Module 2 (CPMB2) Power 1
• F103 — F105 Not Used
• F106 (cc# 8112) — Cab Power Module 2 (CPMB2) Power 2
• F107 — Not Used
• F108 (cc# 0262) — Left Power Module 2A (LPM2A) Power 4
• F109 (cc# 0212) — Left Power Module 2A (LPM2A) Power 1
• F110 — F116 Not Used
• F117 (cc# 0232) — Left Power Module 2A (LPM2A) Power 3
• F118 (cc# 0222) — Left Power Module 2A (LPM2A) Power 2
• F119 (cc# 0642) — Right Control Unit 2 (RCU2) Power 1
• F120 (cc# 0712) — Left Power Module 2B (LPM2B) Power 1
• F121 (cc# 0732) — Left Power Module 2B (LPM2B) Power 3
• F122 (cc# 0722) — Left Power Module 2B (LPM2B) Power 2
• F123 — Not Used
• F124 (cc# 0652) — Right Control Unit 2 (RCU2) Power 2
• F125 — Not Used
• F126 (cc# 0272) — Left Power Module 2A (LPM2A) Power 5
• F127 — Not Used
• F128 (cc# 0762) — Left Power Module 2B (LPM2B) Power 4
• F129 — Not Used
• F130 (cc# 0772) — Left Power Module 2B (LPM2B) Power 5
