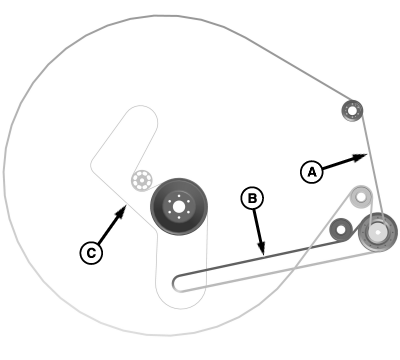

Engine Belt—Routing (Tier 2/Stage II) (S660 and S670)

H95385-UN-16FEB10

A - Rotary Screen Drive Belt, Screen Side

B - Rotary Screen Drive Belt, Engine Side

C - Cooling Fan, Air Conditioner, Compressor Belt
