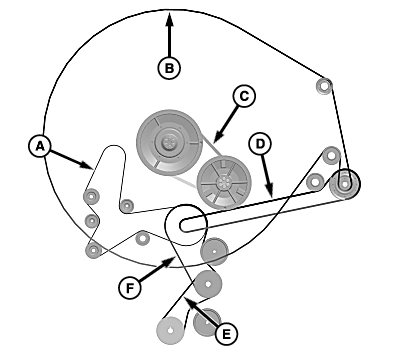

Engine Belt—Routing (Interim Tier 4/Stage III B) (S660 and S670)

H95341-UN-12FEB10

A - Air Conditioner Compressor, Alternator Belt

B - Rotary Screen Drive Belt, Screen Side

C - Variable Speed Fan Belt

D - Rotary Screen Drive Belt, Engine Side

E - Vacuum Fan Driven Belt, Fan Side

F - Vacuum Fan Drive Belt, Engine Side
