Rotary Screen Drive Belt—Replacing (Interim Tier 4/Stage III B) (S660 and S670)

CAUTION:

H102385
H102385-UN-22JUN11

A - Lock-Out Pin

B - Handrail

C - Separator Access Cover

Shut OFF engine, set parking brake and remove key.

Pull lock-out pin (A) and rotate handrail (B) up until handrail locks into place to open separator access cover (C).

H95651
H95651-UN-10MAR10

A - Cap Screws (7 Used)

B - Shield

Remove cap screws (A) and shield (B).

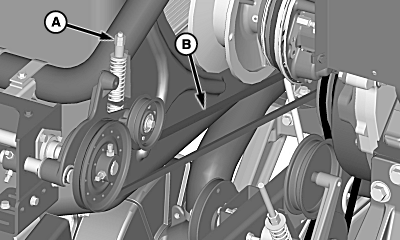

H95657
H95657-UN-10MAR10

A - Nuts

B - Rotary Screen Drive Belt

Loosen nuts (A) and remove rotary screen drive belt (B).

Install replacement belt and tighten nuts until washer is positioned between end of gauge and bottom of step.

Install previously removed shield, close separator access cover and lower handrail.

OUO6075,0000FF8-19-20120213
