Vacuum Fan Drive Belt—Replacing (Interim Tier 4/Stage III B) (S660 and S670)

CAUTION:

H102385
H102385-UN-22JUN11

A - Lock-Out Pin

B - Handrail

C - Separator Access Cover

Shut OFF engine, set parking brake and remove key.

Pull lock-out pin (A) and rotate handrail (B) up until handrail locks into place to open separator access cover (C).

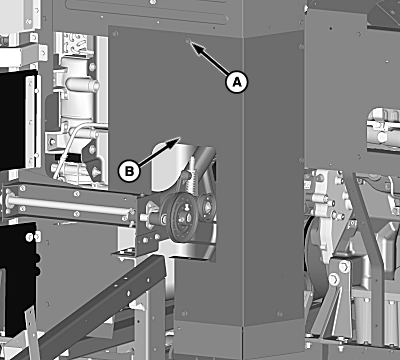

H95651
H95651-UN-10MAR10

A - Cap Screws (7 Used)

B - Shield

Remove cap screws (A) and shield (B).

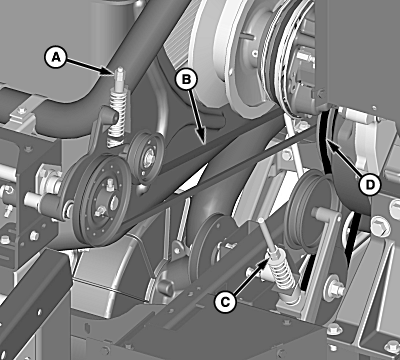

H95655
H95655-UN-10MAR10

A - Nuts

B - Rotary Screen Drive Belt

C - Nuts

D - Vacuum Fan Drive Belt

Loosen nuts (A) and remove rotary screen drive belt (B).

Loosen nuts (C) and remove vacuum fan drive belt (D).

Install replacement vacuum fan drive belt and tighten nut until washer is positioned between end of gauge and bottom of step.

Install rotary screen drive belt and tighten nut until washer is positioned between end of gauge and bottom of step.

Install previously removed shield, close separator access cover and lower handrail.

OUO6075,0000FFA-19-20120213
