Tailings System Drive Belt—Replacing (S680 and S690)

CAUTION:

H97015-UN-22JUN10

H97016-UN-22JUN10

H97017-UN-13SEP10

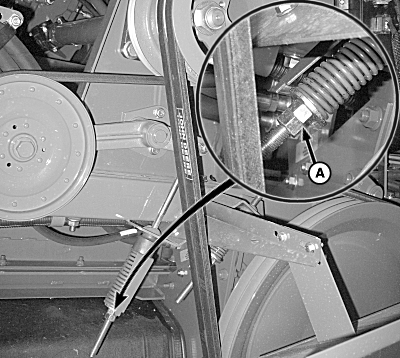

A - Nuts

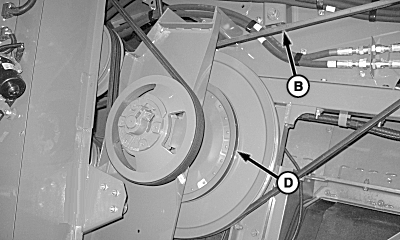

B - Rear Countershaft Belt

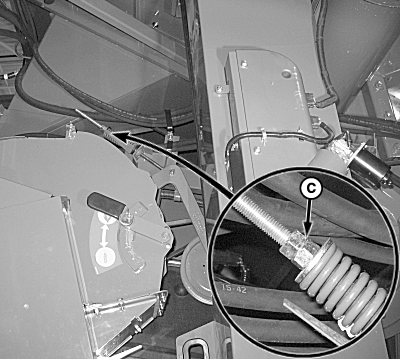

C - Nuts

D - Tailings System Drive Belt

Loosen nuts (A) and remove rear countershaft belt (B) from pulley.

Loosen nuts (C) and remove tailings system drive belt (D).

Install replacement belt and adjust tensioner until washer is positioned between end of gauge and bottom of step.

Install rear countershaft belt onto pulley and adjust tensioner until washer is positioned between end of gauge and bottom of step.
