Grain Tank Loading Auger Deflector

78 L/sec. (2.2 bu./sec.) Unload Rate:

CAUTION:

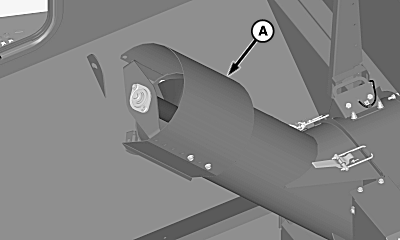

H98769-UN-21OCT10

A - Deflector

Position deflector (A) as needed.

Outward position:

• Windy conditions when harvesting crops like grass seed or rape.
• Corn—Grain tank will fill to the left and to the rear.

Inward position:

• Grain—Grain tank will fill to the right and to the front.

116 L/sec. (3.3 bu./sec.) and 134 L/sec. (3.8 bu./sec.) Unload Rate:

CAUTION:

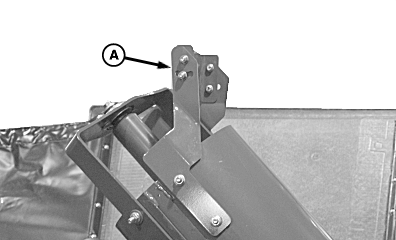

H96890-UN-14JUN10

A - Deflector

Position deflector (A) as needed.

Counterclockwise rotation:

• Windy conditions when harvesting crops like grass seed or rape.
• Corn—Grain tank will fill to the left and to the rear.

Clockwise rotation:

• Grain—Grain tank will fill to the right and to the front.
