Unloading Auger Support Stud—Adjusting (78 L/sec. (2.2 bu./sec.) Unload Rate)

1. CAUTION:


   H73125-UN-09SEP02

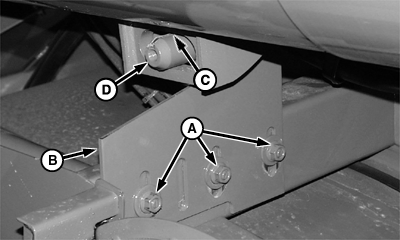

   A - Hardware

   B - Plate

   C - Clearance

   D - Stud

   Shut OFF engine, set parking brake and remove key.

   NOTE: Periodically verify that auger fully slides into support stud when auger is fully retracted. Adjust support stud as needed.

   Loosen nuts (A) to adjust position of stud plate (B).

---




2. Clearance (C) between top of stud (D) and slot, must be set to specification.

   Item	Measurement	Specification
   Top of Stud to Slot	Clearance	0—3 mm (0—1/8 in.)

3. Adjust stud plate as needed and tighten nuts.
