Unloading Auger Position—Adjusting (116 L/sec. (3.3 bu./sec.) and 134 L/sec. (3.8 bu./sec.) Unload Rate)

1.

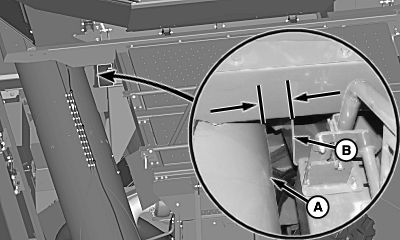

   H98763-UN-21OCT10

   A - Unloading Auger Edge

   B - Grain Tank Frame

   Measure distance from unloading auger edge (A) to grain tank structure (B) as shown.

---




2. Distance must be set to specification.

   Item	Measurement	Specification
   Unloading Auger Edge to Grain Tank Structure	Distance	73 mm (2-7/8 in.)

3.

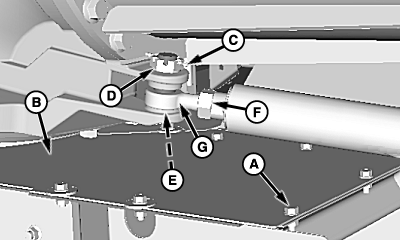

   H93804-UN-08APR09

   A - Cap Screws (8 Used)

   B - Cover

   C - Cotter Pin

   D - Nut and Washer

   E - Pin

   F - Nut

   G - Eyebolt

   If distance is incorrect, remove cap screws (A) and cover (B).

---




4. Remove cotter pin (C), nut and washer (D), and pin (E).

5. Loosen nut (F) and adjust eyebolt (G) to obtain correct distance.

6. Install previously removed hardware and cover after dimensions are set correctly.
