Unloading Auger Cradle Support—Adjusting (116 L/sec. (3.3 bu./sec.) and 134 L/sec. (3.8 bu./sec.) Unload Rate)

1. CAUTION:

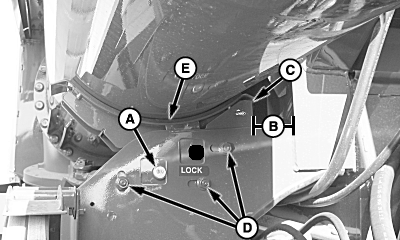

   H93802-UN-13APR09

   A - Pin

   B - Distance

   C - Cradle Support

   D - Cap Screws

   E - Wear Plate

   Shut OFF engine, set parking brake and remove key.

   Swing unloading auger to storage or transport position and keep cradle pinned (A).

---




2. Measure distance (B) between cradle support (C) and grain tank frame as shown.

   Item	Measurement	Specification
   Cradle Support to Grain Tank Frame	Distance	79 mm (3-1/8 in.)

3. NOTE: Verify that lower edge of cradle support is square with grain tank frame.

   If distance is incorrect, loosen cap screws (D) and adjust to specifications.

4. Adjust cradle support (C) up or down until wear plate (E) contacts lower surface of unloading auger.

5. Tighten cap screws after dimension is properly adjusted.
