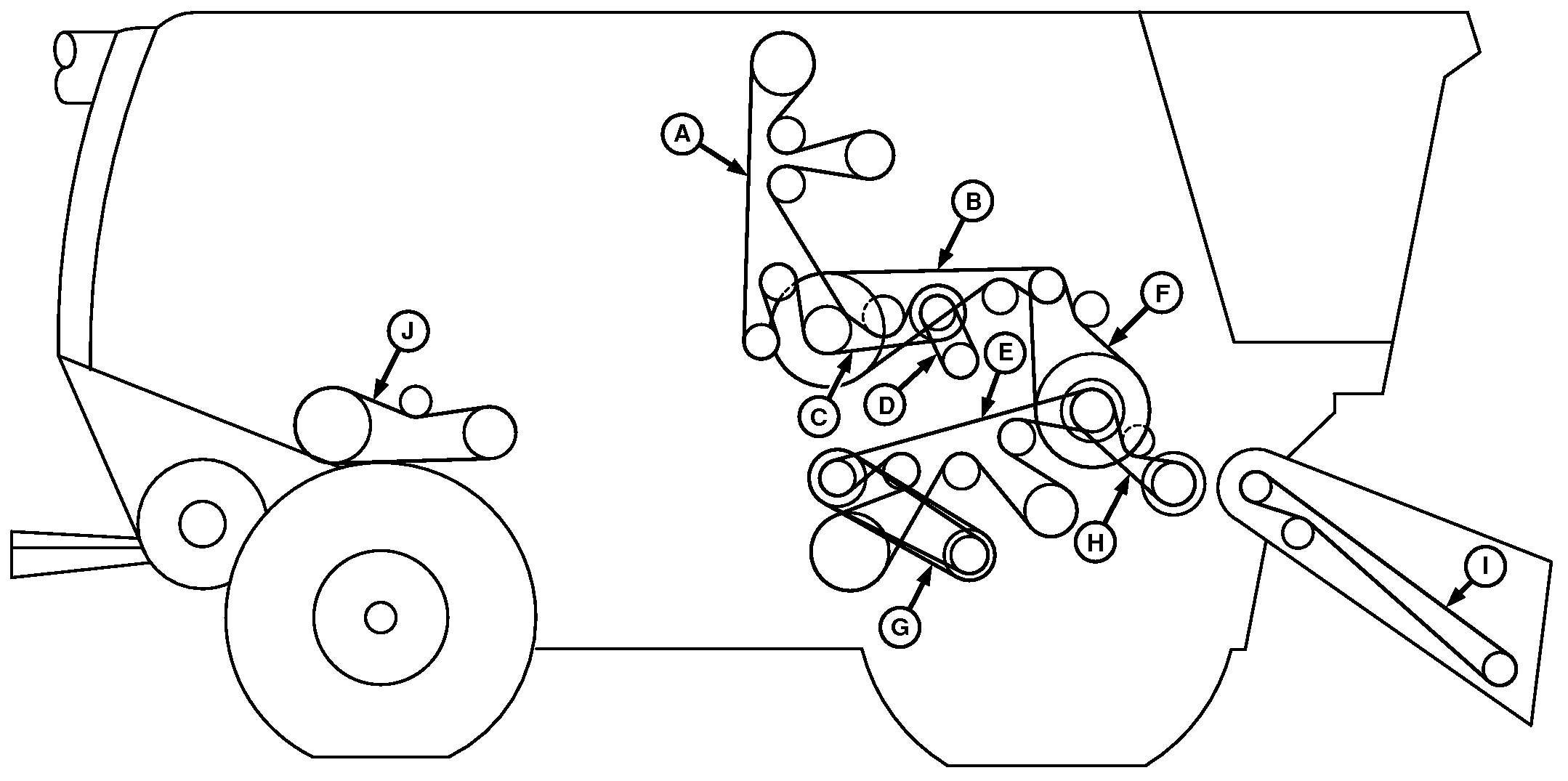

Drive Belts—Right-Hand (S660 and S670)

H99322-UN-10DEC10

A - Clean Grain Elevator Belt

B - Rear Right-Hand Jackshaft Belt

C - Tailings Auger and Elevator Belt

D - Tailings Return Auger, #50 Chain

E - Shoe Fan and Conveyor Augers Belt

F - Front Right-Hand Jackshaft Belt

G - Cleaning Fan Variable Belt

H - Feed Accelerator Belt

I - Feeder Conveyor (Chain), #60 Chain

J - Overshot Beater Drive Belt (Optional) ¹
