Grain Tank Cross Auger Covers

CAUTION:

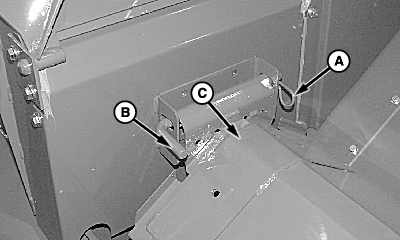

H80947-UN-27MAY04

A - Locking Pins

B - Pins

C - Auger Covers

IMPORTANT: If these covers are raised too far, auger drive shear bolt may break repeatedly, or damage could occur to augers or grain tank.

NOTE: Auger covers vary depending on machine option.

Adjust auger covers as need to slow unloading rate.

Remove locking pins (A) and pins (B) holding ends of auger cover (C) to grain tank. Hold cover in desired position and install previously removed pins and locking pins.

Covers should be level and mounted so each cover is the same distance from auger over entire length.
