Batteries—Connecting Booster

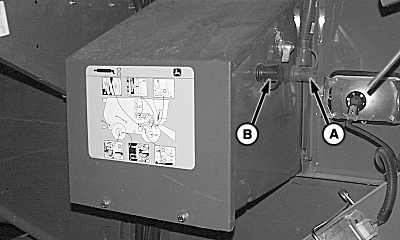

H104930-UN-27FEB12

S660 and S670

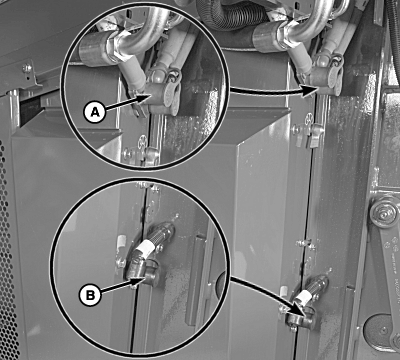

H96584-UN-24MAY10

S680 and S690

A - Positive (+) Post

B - Negative (-) Post

CAUTION: Gas given off by batteries is explosive. Avoid sparks near batteries.

IMPORTANT: Never connect jumper cables with key switch ON. Never jump-start with more than 12 volts.

Remove protective caps from posts.

First jumper cable must first be connected to positive (+) post of booster battery. Connect other end to positive (+) post (A) of machine battery. Second jumper cable must first be connected to negative (-) post of booster battery. Connect other end to negative (-) post (B) of machine battery.
