Lower Driving Light Bulb (If Equipped)—Adjusting

CAUTION:

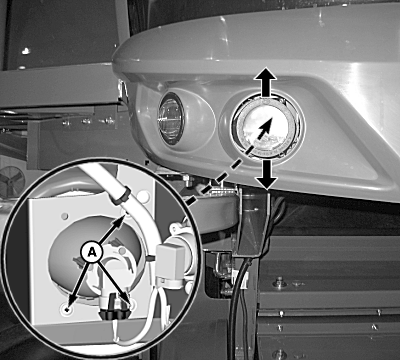

H98977
H98977-UN-02NOV10

A - Screws

Lower feeder house fully before replacing or adjusting headlights.

NOTE: Light assemblies can be adjusted as needed to achieve correct lighting angles.

Adjust screws (A) to rotate light assembly up or down to desired position and tighten screws. Repeat on remaining lights as needed.

OUO6075,0001054-19-20120227
