Cleaning Out Machine (Annual and Specialty Crops)

CAUTION:

H97186
H97186-UN-02NOV10

A - Horn

B - Key Switch

To prevent injury, never clean machine with engine running and separator engaged. Shut OFF engine, set parking brake and remove key.

The following instructions are recommended when cleaning out machine for certified seed crops or when transporting machine inter-state.

CAUTION: Block header safely so it does not move. Lower reel safety stops.

Remove header from machine.

Drive machine over end rows or bumps to jar and shake dirt loose. Shut OFF engine, set parking brake and remove key.

Open or remove all doors and drain holes.

CAUTION: Sound horn (A) to clear everyone from area. Stay clear of machine when discharging chaff.

Turn key switch (B) to start engine.

Engage separator until chaff stops coming out rear of machine.

Lower engine rpm to low idle and engage separator several times. Running the separator at low idle removes dirt from inside the rotor.

Move throttle to high rpm and run for a few minutes. Repeat cycle until chaff no longer comes out rear of machine.

CAUTION: Keep bystanders clear of machine when discharging chaff.

Drive machine onto blocking so right-hand side is about 150 mm (6 in.) higher, or park on incline so dirt can run out.

CAUTION:

H39607
H39607-UN-11OCT88

Shut OFF engine, set parking brake, remove key, block wheels and lower feeder house safety stop.

When working with compressed air in dusty conditions, you must wear goggles and dust mask for personal protection. Air hose must have a 2 m (6 ft.) wand (end).

Start at top of machine and work down.


S660 and S670:

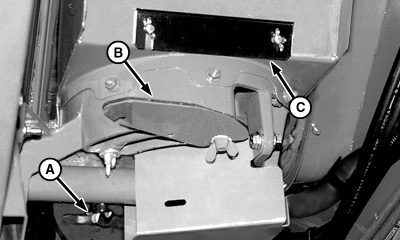

H62230
H62230-UN-19JAN00

A - Cleanout Door

B - Cleanout Door

C - Cleanout Door

Open cleanout doors (A), (B) and (C).

Clean grain from under grain tank cross augers over to the sump.

Clean grain from edges of unloading auger sump to the bottom. Grain must be cleaned out from doors standing on ground.


S680 and S690:

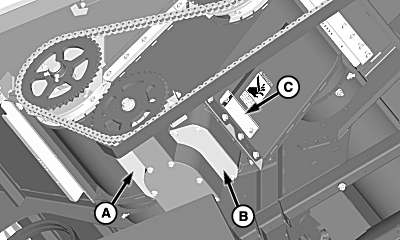

H98866
H98866-UN-27OCT10

A - Cleanout Door

B - Cleanout Door

C - Cleanout Door

Open cleanout doors (A), (B) and (C).

Clean grain from under grain tank cross augers over to the sump.

Clean grain from edges of unloading auger sump to the bottom. Grain must be cleaned out from doors standing on ground.


Grain Tank Sample Trough (If Equipped):

H98766
H98766-UN-21OCT10

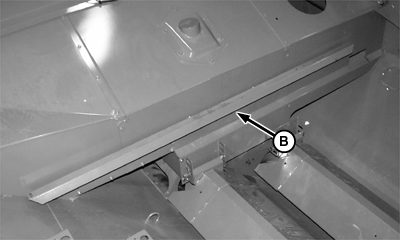

H62943
H62943-UN-03MAR00

Sample Trough Storage Position

A - Grain Sample Trough

B - Grain Sample Trough (Storage Position)

C - Clamps

Remove grain sample trough (A) and place sample trough in storage position (B).


Grain Tank Loading Auger (Grain Tank Extensions):

H102235
H102235-UN-15JUN11

A - Clamps

Release clamps (A) and lower auger.


Grain Tank Loading Auger (Grain Tank Covers):

CAUTION:

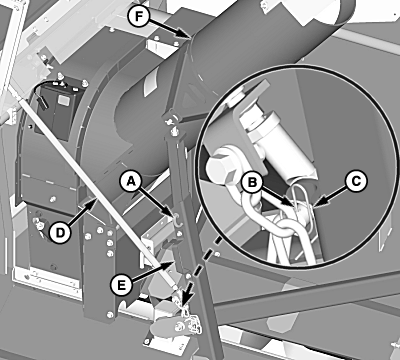

H102236
H102236-UN-15JUN11

A - Pin

B - Quick-Lock Pin

C - Pin

D - Turnbuckle

E - Handle

F - Auger

DO NOT pull or remove pin (A) to lower grain tank loading auger. Removing pin could result in personal injury or machine damage.

Grain tank loading auger is heavy. Use extra care when raising or lowering auger.

Remove quick-lock pin (B) and pin (C) from turnbuckle (D).

Use handle (E) to assist in lowering grain tank loading auger (F).

Clean top area and down into clean grain elevator to clean elevator chain. Clean all sides.

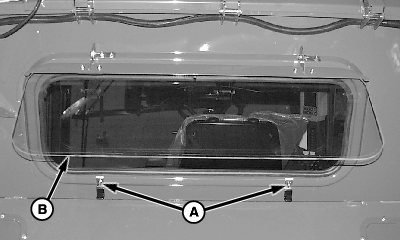

H76204
H76204-UN-28APR03

A - Clamps

B - Grain Tank Window

Loosen clamps (A) and swing grain tank window (B) up.

Cleanout area behind cab, around primary countershaft and over separator.

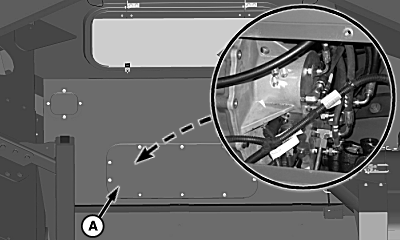

H87627
H87627-UN-13MAR07

A - Access Door

Remove access door (A) (if equipped) on front side of grain tank.

Cleanout material around multi-speed feeder house drive gearcase (if equipped).

H102385
H102385-UN-22JUN11

A - Lock-Out Pin

B - Handrail

C - Engine Access Covers

Pull lock-out pin (A) and rotate handrail (B) up until handrail locks into place.

Open engine access covers (C) and clean top side of engine compartment area and around separator on front side of engine.

Clean entire engine compartment area, especially under engine.

Wipe up any oil or grease found on engine area.

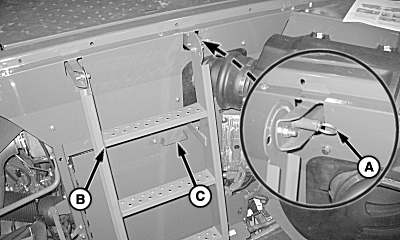

H95353
H95353-UN-25AUG10

A - Lock-Out Pin

B - Ladder

C - Cover

Pull lock-out pin (A) and rotate ladder (B) up until ladder locks into place.

Pull filter access cover (C) open to release from magnet.

Clean rear side of engine compartment area.

Clean entire engine compartment area, especially under engine.

Wipe up any oil or grease found on engine area.

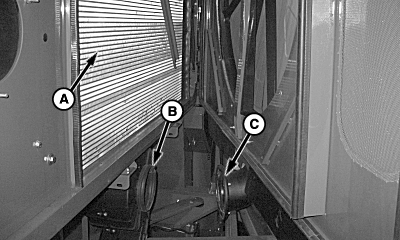

H97189
H97189-UN-30JUN10

A - Radiator

B - Vacuum Duct

C - Transfer Duct

Open rotary screen door and clean the following areas from inside out: radiator (A), condenser, oil cooler, and charge air cooler.

Cleanout dirt from lower vacuum duct (B) and transfer duct (C).


S660 and S670:

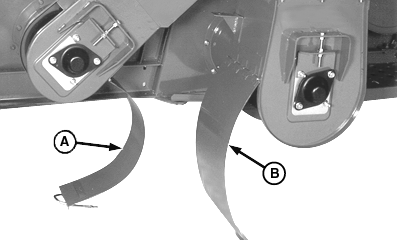

H62232
H62232-UN-19JAN00

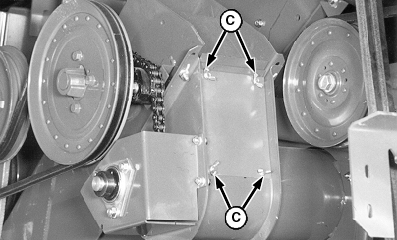

H62233
H62233-UN-19JAN00

A - Tailings Elevator Door

B - Clean Grain Elevator Door

C - Wing Nuts

Open lower tailings elevator door (A) and clean grain elevator door (B).

Remove wing nuts (C) and remove door at upper end of tailings elevator.

Remove material as needed and clean sides of elevator.


S680 and S690:

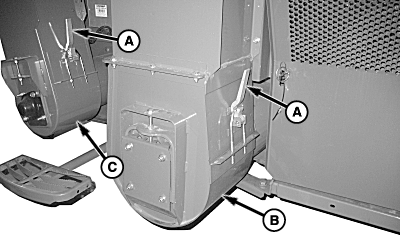

H97193
H97193-UN-30JUN10

A - Handle

B - Clean Grain Elevator Door

C - Tailings System Elevator Door

Use handle (A) to open clean grain elevator door (B) and tailings system elevator door (C).

Remove material as needed and clean sides of elevator.


S680 and S690:

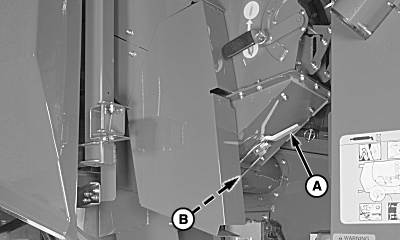

H97194
H97194-UN-30JUN10

A - Handle

B - Tailings System Auger Door

Use handle (A) to open tailings system auger door (B).

Remove material as needed and clean sides of elevator.

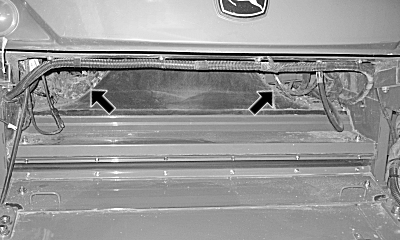

H100541
H100541-UN-02MAR11

Cleanout chaff between separator and sides of machine.

H100486
H100486-UN-28FEB11

H90905
H90905-UN-27FEB08

A - Nuts

B - Feeder House Door

C - Feeder House Door

Loosen nuts (A) on each side of feeder house door and push nuts towards center of feeder house.

Pull door forward to remove.

Clean feeder house through top doors (B) and (C).

Lift conveyor chain and let chain snap back several times while cleaning.

H52761
H52761-UN-17MAY99

A - Lever

Remove quick-lock pin and move lever (A) down and rearward to open feed plate.

Cleanout feed plate area.

Push lever forward and up to close feed plate. Retain with quick-lock pin.

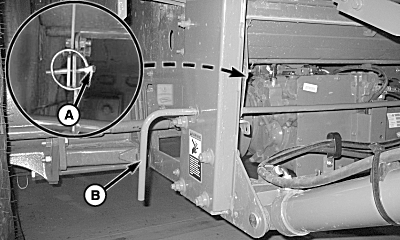

H99239
H99239-UN-01DEC10

A - Quick-Lock Pin

B - Lever

Remove quick-lock pin (A) and move lever (B) up to open stone trap.

Cleanout stone trap area.

Move lever down to close stone trap. Retain with quick-lock pin.

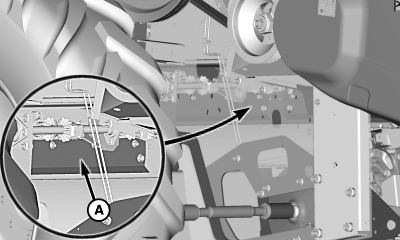

H102538
H102538-UN-29JUN11

A - Cleanout Doors

If Equipped: Remove cap screws from cleanout doors (A) to clean area.

Install cleanout doors and cap screws when cleaning is complete.

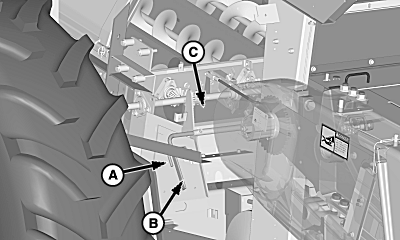

H91139
H91139-UN-15APR08

A - Lock-Out Pin

B - Handle

C - Cleanout Door

If Equipped: Pull lock-out pin (A) and move handle (B) up to dump cleanout door (C) and move handle down to close and lock cleanout door.

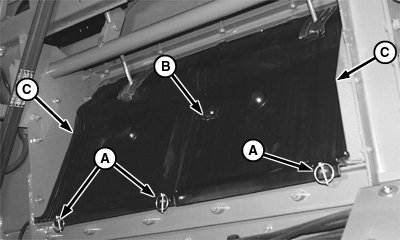

H62265
H62265-UN-19JAN00

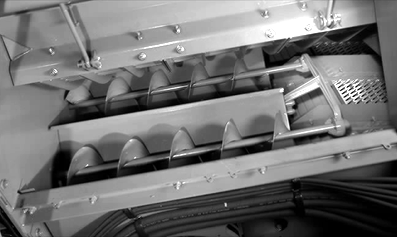

H52708
H52708-UN-23MAR99

A - Quick-Lock Pins

B - Spring Latch

C - Separator Covers

Remove quick-lock pins (A), spring latch (B) and separator covers (C). Use scraper to loosen material, and cleanout through sides of machine.

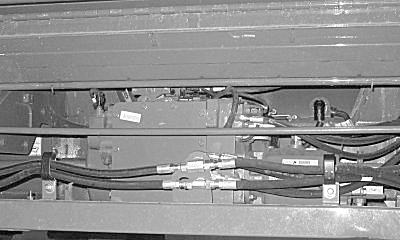

H99165
H99165-UN-22NOV10

Push Button Shift Machine Shown

Clean off top of axle and transmission.

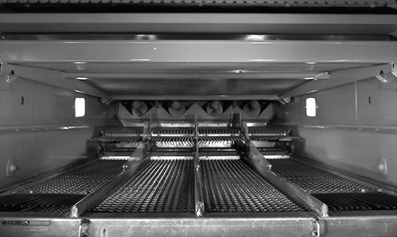

H52710
H52710-UN-23MAR99

Open sieve and chaffer as far as possible and clean.

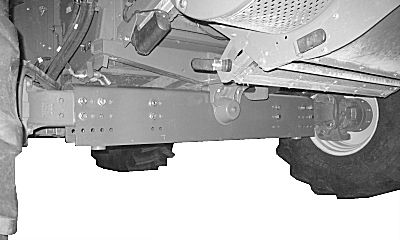

H100556
H100556-UN-02MAR11

Clean rear axle area.

H96806
H96806-UN-09JUN10

A - Quick-Lock Pin

B - Shield

C - Quick-Lock Pin

D - Latch

E - Shield

Remove quick-lock pin (A) and open shield (B).

Remove quick-lock pin (C) and turn latch (D) to unlock.

Lift and remove rear shield (B) and middle fan shield (E).

Cleanout fan area.

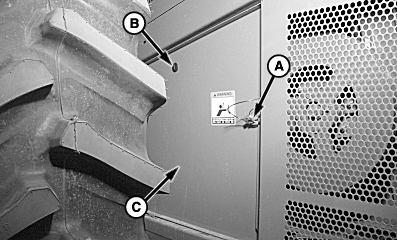

H96803
H96803-UN-09JUN10

A - Quick-Lock Pin

B - Latch

C - Shield

Remove quick-lock pin (A) and turn latch (B) to remove shield (C).

Cleanout area.

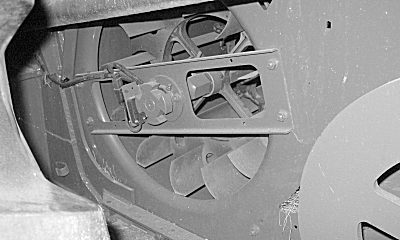

H100557
H100557-UN-02MAR11

Clean area around fan.

H97565
H97565-UN-14SEP10

A - Switch

Raise chopper (if equipped) with switch (A).

H98137
H98137-UN-20SEP10

A - Wing Nut

B - Handle

Loosen wing nut (A) and use handle (B) to disengage knifebank and clean chopper.

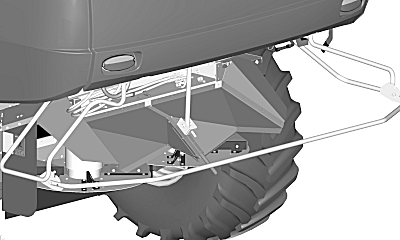

H98906
H98906-UN-27OCT10

Clean chaff from spreader (if equipped) drive area and spreader hood.
