Driving Machine on Roads

1.
   H94727-UN-27JAN10

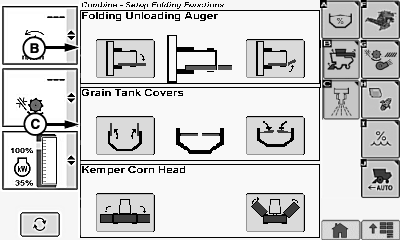

   H96010-UN-05OCT10

   A - Folding Functions Shortcut Switch

   B - Folding Unloading Auger

   C - Folding Grain Tank Covers

   Press folding functions shortcut switch (A) for direct navigation to the folding functions screen.

---




2. IMPORTANT: Verify that grain tank is unloaded before transporting machine on road.

   Touch or press and hold confirm switch when folding unloading auger icon (B) is highlighted.

   NOTE: Folding unloading auger is an automatic feature when icon is selected. Unloading auger begins to fold automatically when icon is selected.

3. CAUTION: Avoid power line entanglement. Grain tank covers must be closed before transporting machine.

   Grain Tank Covers (If Equipped):

   Touch or press and hold confirm switch when folding grain tank covers icon (C) is highlighted.

   NOTE: Covers automatically fold when desired icon is touched or confirm switch is pressed.

4.
   H98766-UN-21OCT10


   H62943-UN-03MAR00

   Sample Trough Storage Position

   A - Grain Sample Trough

   B - Grain Sample Trough (Storage Position)

   Remove grain sample trough (A) (if equipped) and place sample trough in storage position (B).

---




5.
   H102235-UN-15JUN11

   A - Clamps

   Manual Fold Clean Grain Auger (If Equipped): Release clamps (A) and lower auger.

---




6.

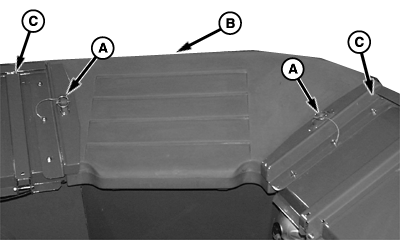

   H82605-UN-10MAR05

   A - Quick-Lock Pins

   B - Grain Tank Corner Extensions

   C - Extensions

   78 L/sec. (2.2 bu./sec.) Unload Rate Grain Tank Extensions (If Equipped): Remove quick-lock pins (A) from grain tank corner extensions (B). Fold grain tank extensions (C) in the following order:

   1. Fold front grain tank extension and rear grain tank extension.

   2. Fold left-hand grain tank extension and right-hand grain tank extension.

---




7.

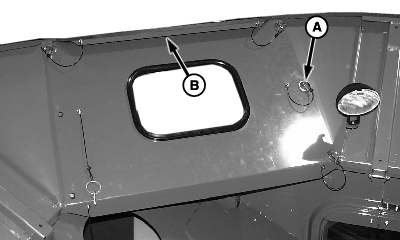

   H75331-UN-26FEB03

   Front Grain Tank Extension Shown

   A - Quick-Lock Pins

   B - Grain Tank Corner Extensions

   116 L/sec. (3.3 bu./sec.) Unload Rate Grain Tank Extensions (If Equipped): Remove quick-lock pins (A) from grain tank corner extensions (B). Fold grain tank extensions in the following order:

   1. Fold front grain tank extension and rear grain tank extension.

   2. Fold left-hand grain tank extension and right-hand grain tank extension.

---




8.

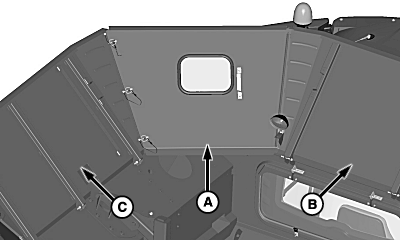

   H100448-UN-25FEB11

   Front Grain Tank Extension

   A - Grain Tank Corner Extensions

   B - Front Grain Tank Extension

   C - Left-Hand Grain Tank Extension

   134 L/sec. (3.8 bu./sec.) Unload Rate Grain Tank Extensions (If Equipped): Remove quick-lock pins from grain tank corner extensions (A). Fold grain tank extensions in the following order:

   1. Fold front grain tank extension (B) and rear grain tank extension.

   2. Fold left-hand grain tank extension (C) and right-hand grain tank extension.

---




9. CAUTION:

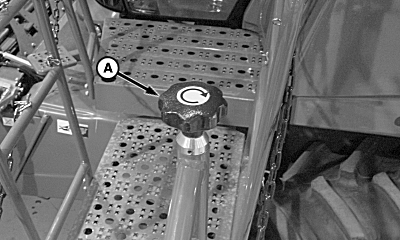

   H96869-UN-11JUN10

   A - Handle

   Swing ladder to the full forward position to reduce machine width and to orient marker/hazard light toward oncoming motorists.

   IMPORTANT: Travel at a reasonable speed for road or field conditions. Never transport on the road with grain in the tank.

   Follow local regulations for equipment size, lighting, and marking before driving on public roadways.

   Use handle (A) to unlock ladder and swing fully forward.

---




10. Fold radio antenna down and retain with hook (if equipped). If hook is not available, retain antenna to cab roof with tape.

11.

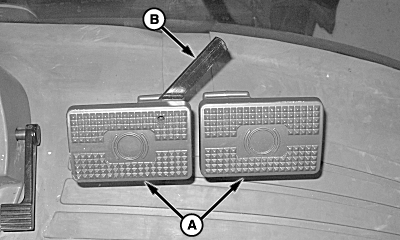

    H96681-UN-01JUN10

    A - Pedals

    B - Lock

    Lock brake pedals together with lock (B) when driving on roads. Leave pedals (A) unlocked for field operation.

---




12. CAUTION: Use seat belt whenever operating machine or riding as an observer.

    Fasten seat belt.

13. CAUTION: Sound horn before starting engine to clear people away from machine.

    Sound horn and start engine. Use cold weather starting aid if needed.

14.

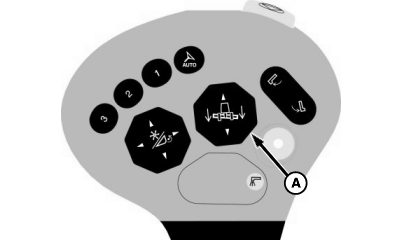

    H96011-UN-01NOV10

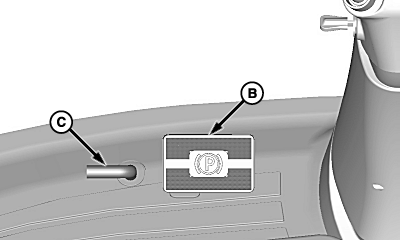

    H105174-UN-13APR12

    A - Header Raise/Lower Switch

    B - Parking Brake

    C - Pedal

    Raise header with header switch (A).

---




15. Non ProDrive Machines: Disengage parking brake (B) with pedal (C).

16. NOTE:

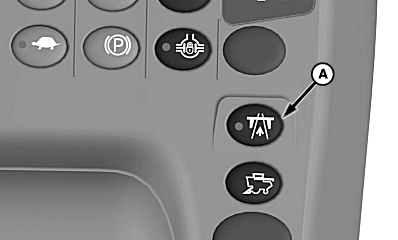

    H96012-UN-13APR10

    A - Road Transport Disconnect Switch

    After transporting machine, press road transport disconnect switch for two seconds allowing indicator light to turn OFF and allowing desired switch functions to operate.

    Engage road transport disconnect switch (A).

---




17. CAUTION:


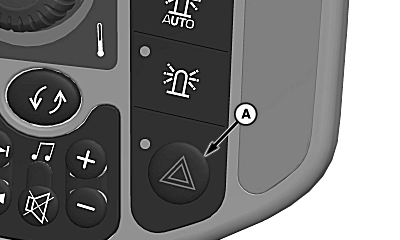

    H96013-UN-13APR10

    A - Beacon/Hazard Light Switch

    When transporting on a road or highway, marker/hazard lights and taillights on both sides provide a warning to operators of vehicles approaching from the front and rear. These lights must be turned ON when driving machine on public roadways. Swing cab ladder fully forward to orient marker/hazard lights towards oncoming motorists. Do not operate marker/hazard lights if prohibited by law.

    Turn beacon/hazard light switch (A) ON for both daytime and nighttime road travel. Warning lights automatically operate when hazard lights are ON.

---




18.

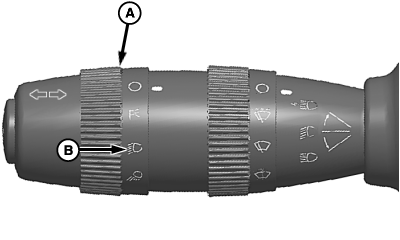

    H96014-UN-22JUN11

    A - Selection Switch

    B - Road Lights Switch

    Use selection switch (A) to turn ON road lights (B) for nighttime travel.

---




19. NOTE: Turn signal indicators on cornerpost display illuminate to indicate a turn.

    Use turn signals as needed. They are not self canceling.

20.

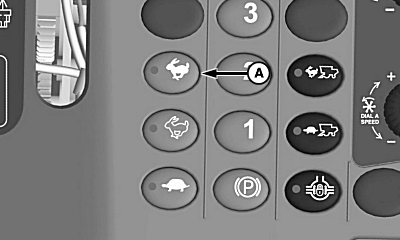

    H96015-UN-13APR10

    A - Engine Speed Switch

    Press engine speed switch (A) for maximum engine speed.

---




21. NOTE: For field operation, select a gear according to working conditions.

    Non ProDrive Machines: Engage 3rd gear for road travel.

22. CAUTION: If transporting machine with header attached, travel at a reasonable speed to ensure adequate braking performance and control of machine.

    Slowly move multi-function lever forward or rearward. When coming to the top of a hill, pull back on multi-function lever before starting down the other side.
