Fuel Tank—Filling

CAUTION:

H95323
H95323-UN-11FEB10

H95329
H95329-UN-11FEB10

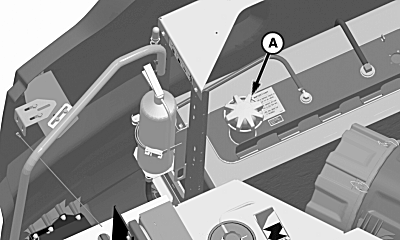

A - Fuel Tank Cap

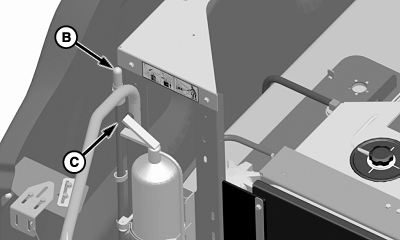

B - Fuel Tank Breather

C - Hose

Handle fuel carefully. Do not refuel machine while smoking. Shut OFF engine, set parking brake and remove key before filling tank.

Do not overfill fuel tank. Bodily injury can result from fuel splash back. Leakage can result from expansion of fuel. If tank is filled too full, then left in direct sunlight or if temperature gets too hot, tank will overflow.

Fuel tank cap (A) is not vented. Excess air is vented through fuel tank breather (B).

Visually inspect fuel tank breather. Do not allow excessive amounts of chaff or debris to collect on breather. If breather is covered with debris, it does not allow fuel tank to breathe. Remove fuel tank breather from hose (C) and clean.

OUO6075,0001069-19-20120227
