Coolant Heater

CAUTION:

H95379
H95379-UN-16FEB10

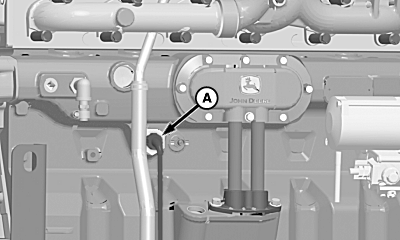

S660 and S670 (Tier 2/Stage II) (Front Side)

H71689
H71689-UN-18APR02

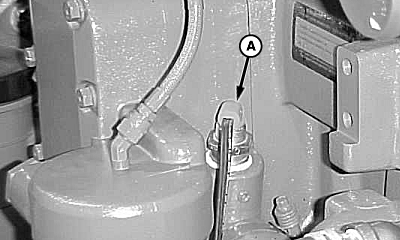

S680 and S690 (Tier 2/Stage II) (Rear Side)

H95324
H95324-UN-11FEB10

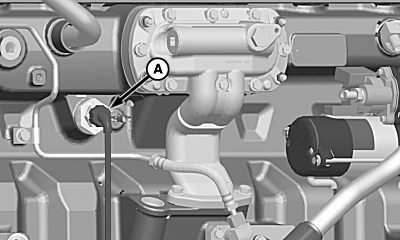

S660 and S670 (Interim Tier 4/Stage III B) (Front Side)

H95424
H95424-UN-19FEB10

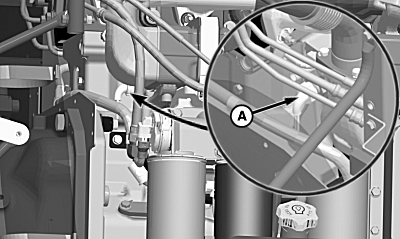

S680 and S690 (Interim Tier 4/Stage III B) (Rear Side)

TS210
TS210-UN-23AUG88

A - Coolant Heater

To avoid shock or hazardous operation, always use a three wire heavy duty electrical cord (minimum gauge 10 AWG and no longer than 7.6 m (25 ft.)) equipped with three connectors. If a two to three contact adapter is used at wall receptacle, always connect green wire to a good ground.

Before connecting heater to power source, be sure that element is immersed in coolant. NEVER energize heater in air. Doing so can cause element sheath to burst causing personal injury.

Coolant heater (A) mounts in freeze plug opening (front side or rear side of engine). By warming engine coolant, the heater reduces oil drag, eases starting, and shortens warm up time.

Coolant Heater Types

  • 1000 W (110 V)
  • 1000 W (220 V) (Export Machines)
