Rear Wheel Bolt Torque

H96809

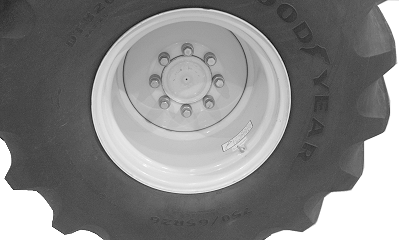

H96809-UN-09JUN10

Each time a rear wheel is removed, torque wheel bolts to specification. After one hour of operation, torque wheel bolts again to specification and every 100 hours thereafter.

ItemMeasurementSpecification
M16 Wheel Bolts (Regular Duty Two-Wheel Drive)Torque (Dry)315 N·m (230 lb.-ft.)
M22 Wheel Bolts (Extra Heavy Duty Two-Wheel Drive)Torque (Lubricated)710 N·m (524 lb.-ft.)
M22 Wheel Bolts (Four-Wheel Drive)Torque (Lubricated)710 N·m (524 lb.-ft.)

NOTE: Mount rear tires with the offset ”in” and valve stems to the outside.

Refer to decal on tire for proper torque sequence.
