Every 800 Hours
H96435-UN-18MAY10

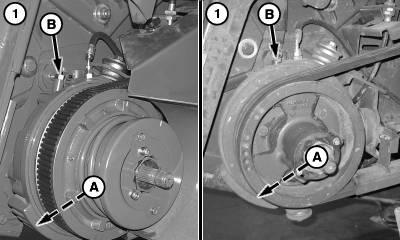

H91014-UN-20MAR08
Variable Speed / Multi-Speed Reverser Gearcase

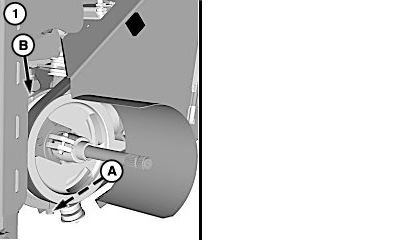

H104990-UN-07MAR12
Fixed Speed
A - Plug
B - Dipstick
1. Feeder House Reverser Gearcase - Raise feeder house and lower safety stop. Drain oil with plug (A), wipe plug clean and refill at dipstick opening (B). Check oil level with feeder house raised up. Gearcases with an oil cooler requires gearcase be run for several minutes. This ensures that the cooler is filled with oil. Oil level must show on knurled part of dipstick. Refer to Fuels and Lubricants section for proper oil type.|
OUO6075,0001092-19-20120307 |
