Every 400 Hours

H104959-UN-29FEB12

H97612-UN-25AUG10

H104960-UN-29FEB12

H104961-UN-29FEB12

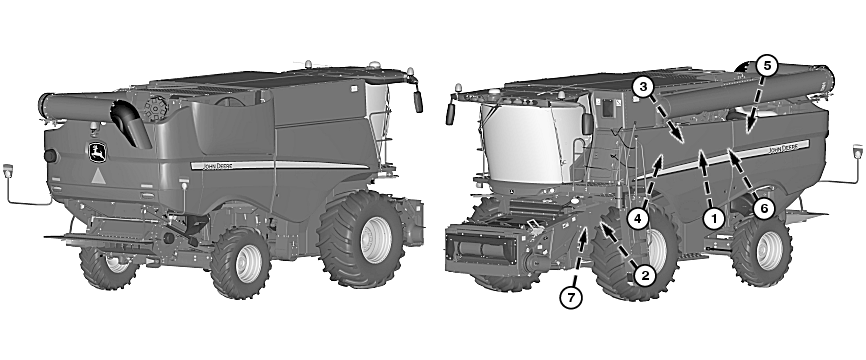

S660 and S670 / S680 and S690

H104962-UN-29FEB12

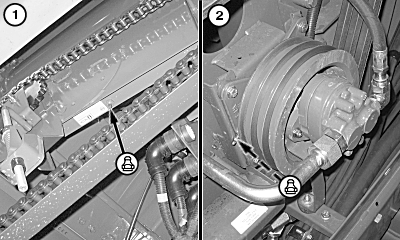

1. Unloading Auger Upper Gearcase - Grease fitting.

2. Header/Reel Drive Pump Sheave Bearing - Grease fitting.

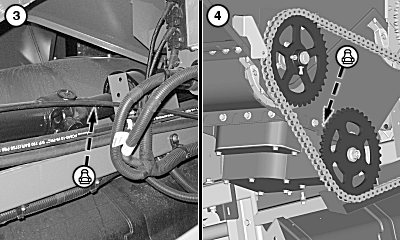

3. NOTE: Machines equipped with multi-speed feeder house drive have five grease fittings.

   Primary Countershaft Universal Joint Spline (Non Multi-Speed Feeder House) - Rotate to access fitting and grease.

4. IMPORTANT: Pump 10 shots of grease into fitting.

   S680 and S690 Machines: Vertical Unloading Auger Upper Gearcase - Grease fitting.

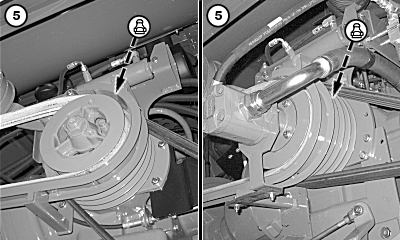

5. Chopper/Unloading Driveshaft Bearing - Rotate sheave to access fitting on bottom of sheave groove and grease fitting.

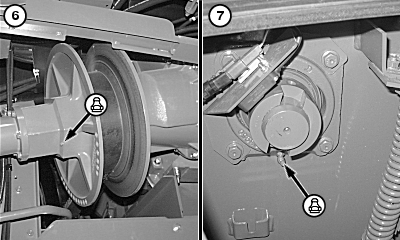

6. IMPORTANT: Remove pipe plug and install grease fitting. Pump 40—45 shots of grease into fitting. DO NOT OVER GREASE. Remove grease fitting and reinstall pipe plug.

   Variable Speed Driver Sheave - Close sheaves (high speed) before greasing at pipe plug in outer sheave hub. Rotate sheave for pipe plug access. Cycle cylinder speed to distribute grease if operated at high speed all the time.

7. Feed Accelerator Bearing (Left Side) - Grease fitting.
