Transmission (Mechanical Shift and Push Button Shift), Final Drives, Loading Auger, Primary Countershaft and Two-Speed Separator Drive Gearcases

TS1653-UN-14MAR96

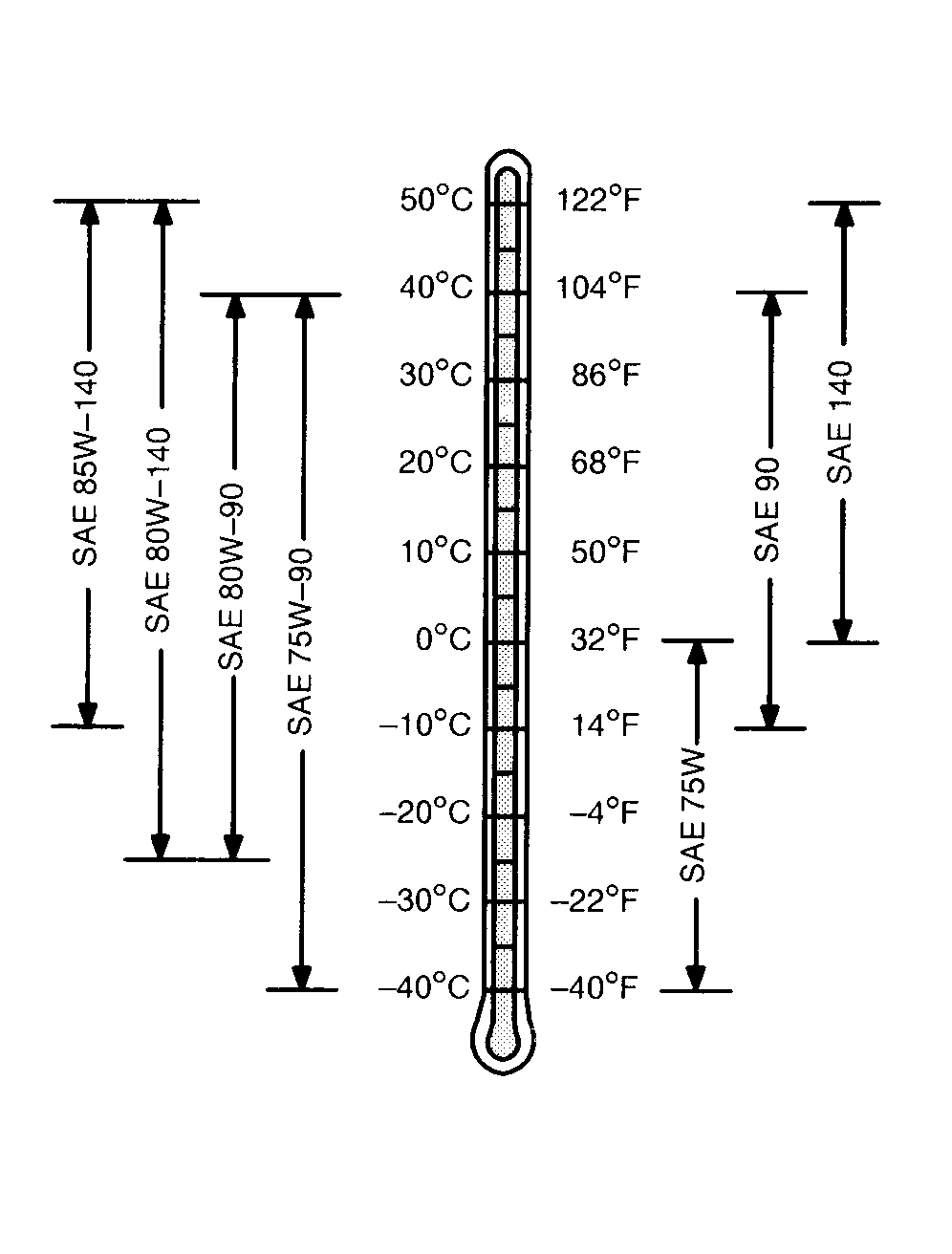

Use oil viscosity based on the expected air temperature range during the period between oil changes.

The following oils are preferred:

• John Deere GL-5 GEAR LUBRICANT
• John Deere EXTREME-GARD™

Other oils may be used if they meet API Service Classification GL-5.

Product Number	Description	Size
TY6252	80W/90 GL5 Gear Lube	16 kg pail (35 lb. pail)
TY6296	80W/90 GL5 Gear Lube	0.9 L can (1 qt. can)
TY6256	85W/140 GL5 Gear Lube	16 kg pail (35 lb. pail)
TY6345	85W/140 GL5 Gear Lube	0.9 L can (1 qt. can)
